Flush Seam Series

Features & Benefits

• 24 & 22 Tru-Gauge™
• .032″ & .040″ Aluminum
• Substrate: ASTM A653/A792
• Custom Lengths 3′ to 35′
  (Inquire for longer and shorter lengths)
• 2′ Shortcut capability (fee applicable)
• Concealed fasteners: fasteners cannot leak

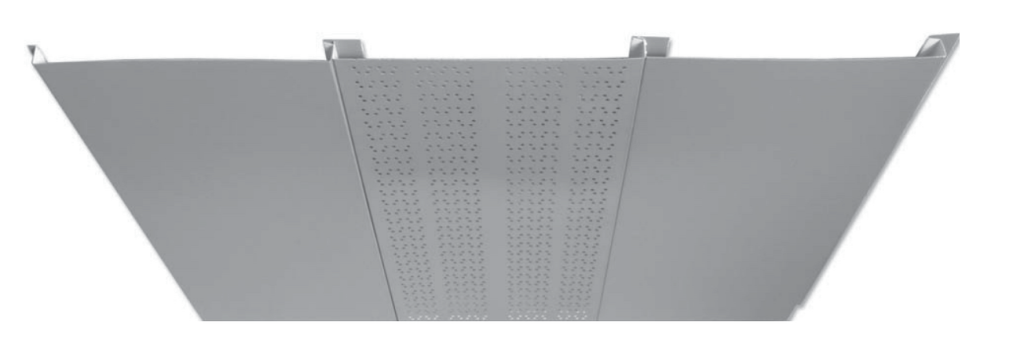

• Available as perforated and solid panels
• 6.16 sq. in. (4.2%) free air flow per lineal foot of perforated panel
• Provides increased ventilation
• Versatile in wall and soffit applications
• Panel options: Perforated, Striations, Single or Double V-Grooves, and Flat Pan
• “Oil Canning” is an inherent characteristics of roof and wall products, and not a defect, which is not a cause for panel rejection

Testing

• ICC-ESR #5045 with CBC-CRC Supplement**
• ASTM E1592 – Structural Uniform Air Pressure
• ASTM E1680 – Air infiltration (roof)**
• ASTM E283 – Air infiltration (wall)
• ASTM E1646 – Water infiltration (roof)**
• ASTM E331 – Water infiltration (wall)

** ShadowLine™ and SmoothWall™ only

Material Specifications

• 24 & 22 gauge Kynar 500® Painted Steel
• .032″ Kynar 500® Painted Aluminum
• 24 Tru-Gauge™ G-90 Galvanized or AZ-50
• 24 & 22 gauge Zincalume® Plus AZ-55 (no finish warranty  – 25 year perforation warranty)
• .040″ Kynar 500® Painted Aluminum (please inquire)
• 24 Tru-Gauge™ Bonderized
• 22 gauge Rusteel Plus™ (A606)
• Custom 20 & 18 Tru-Gauge™ and .050″ and .063″ Aluminum (please inquire)
• 16 OZ & 20 OZ Real Copper

Finishes

• Kynar 500® 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
• Vintage® has a color range that can vary from batch-to-batch and have directional variations
  • For more information: click here
• Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
  • For more information: click here
• “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
• 40-year residential paint warranty
• 20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
