Purlins

Purlins are the unsung heroes of a metal building’s roof system; essential secondary framing members that deliver strength, efficiency, and long-term performance.                                                                                                                                                                                      At Taylor Metal Products, we manufacture premium galvanized cold-formed secondary framing components including Zee-purlins, Cee-purlins, eave struts, and more. Designed for superior durability, corrosion resistance, and performance in warehouses, commercial buildings, agricultural structures, and industrial facilities. Choose Taylor Metal Products for reliable, high-quality secondary framing that delivers strength, efficiency, and value. Contact us today for custom quotes and solutions tailored to your next metal building project!

Features & Benefits

  • Fast lead time
  • Cee-Profile Purlins: Classic “C” shape ideal for shorter spans, walls, or applications needing flat mounting surfaces.

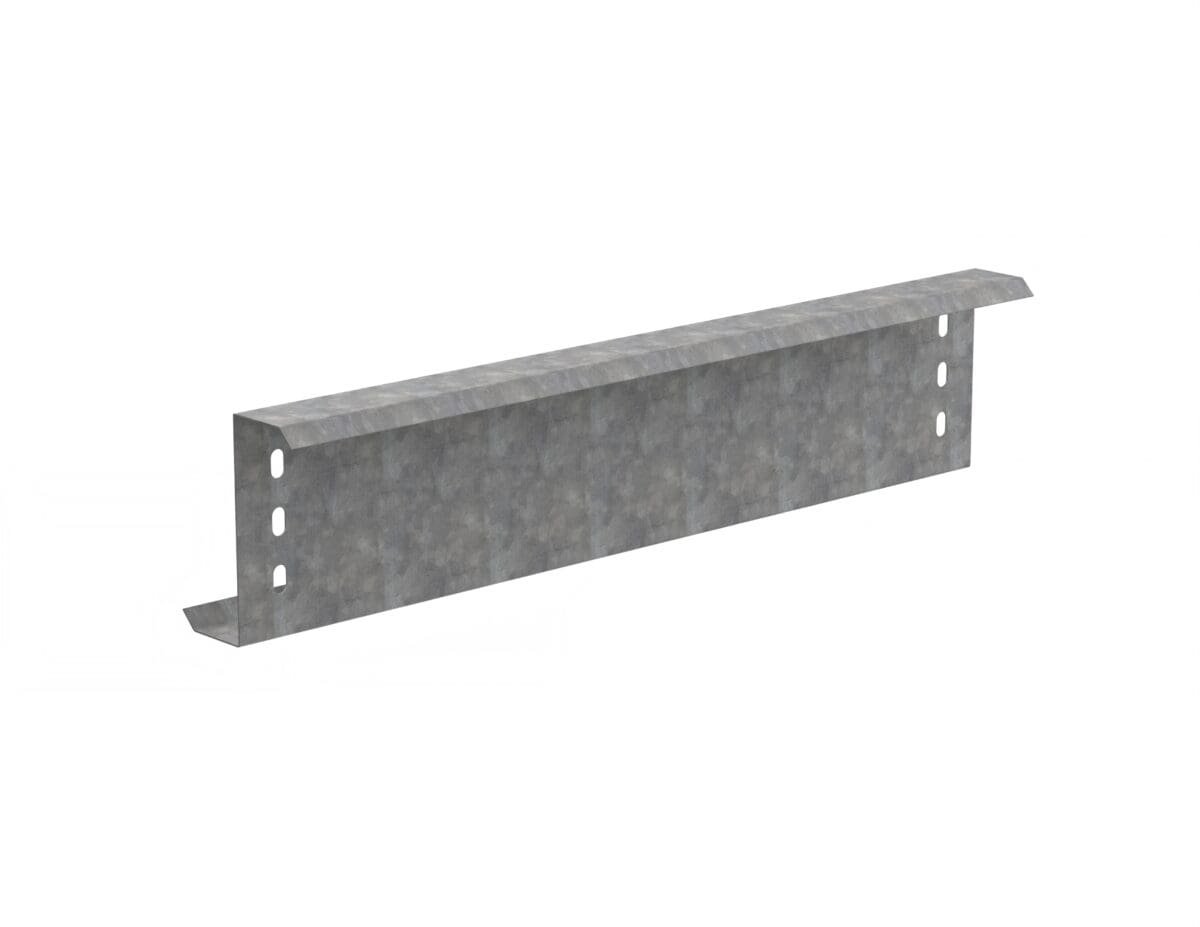

  • Zee-Profile Purlins: Distinctive “Z” shape with angled flanges and stiffening lips for seamless overlapping/lapping across spans, delivering continuous beam action and maximum strength.
  • Eave Struts: Are specialized horizontal members installed along the building’s eaves (where the roof meets the sidewalls), bridging the roof and wall systems for a seamless, strong connection.
  • High-strength, cold-rolled galvanized steel.
  • Precision pre-punched holes for bolt-up installation.
  • Available in customizable depths, gauges, and lengths to meet specific load and span requirements.

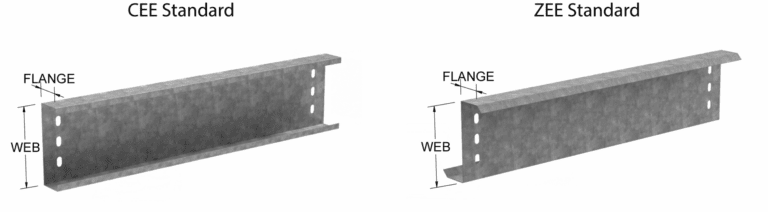

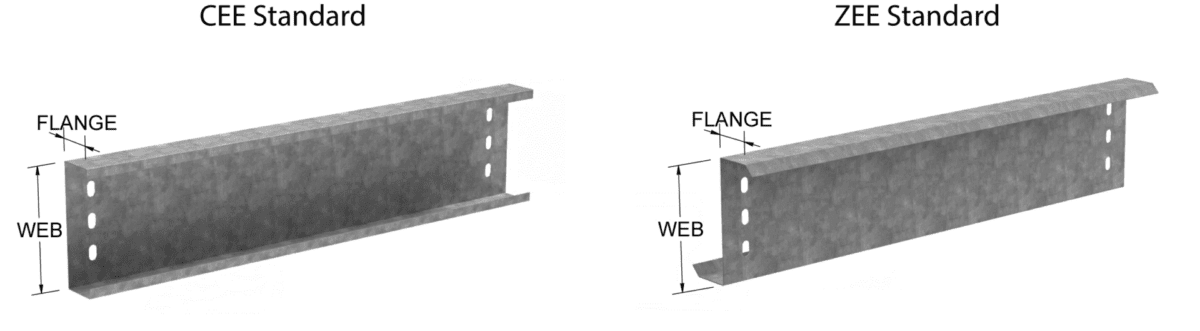

WEBFLANGEGaugeWeight Per LF (LBS)CEE Part NumberZEE Part Number
4"2.5"162.42PBC4x2.5-16PBZ4x2.5-16
142.84PBC4x2.5-14PBZ4x2.5-14
6"2.5"162.42PBC6x2.5-16PBZ6x2.5-16
142.84PBC6x2.5-14PBZ6x2.5-14
8"2.5"162.82PBC8x2.5-16PBZ8x2.5-16
143.41PBC8x2.5-14PBZ8x2.5-14
124.92PBC8x2.5-12PBZ8x2.5-12
8"3"162.85PBC8x3-16PBZ8x3-16
143.56PBC8x3-14PBZ8x3-14
125.00PBC8x3-12PBZ8x3-12
10"2.5"143.90PBC10x2.5-14PBZ10x2.5-14
125.62PBC10x2.5-12PBZ10x2.5-12
