Classic 7/8″ Corrugated™

Produced in Salem

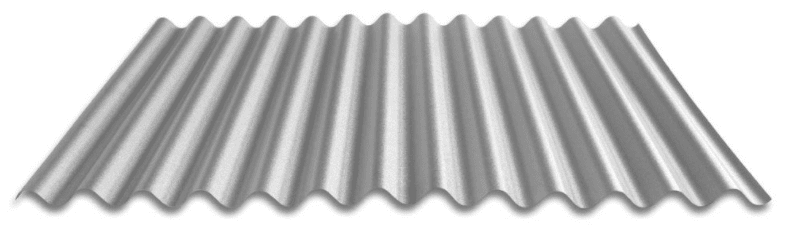

Classic 7/8″ Corrugated™ Panel is an economical, structural, exposed fastener metal roof and wall panel. Deep corrugations allow for aesthetically pleasing shadow lines, making it an excellent choice for siding or roofing applications.

ICC-ESR #5045 with CBC-CRC Supplement

ICC-ESR #5046 with CBC-CRC Supplement

UL Evaluation Report UL ER25913-01

Residential Limited Lifetime Warranty

Features & Benefits

Manufactured in Salem, OR
32″ coverage
7/8″ rib height
26, 24, & 22 Tru-Gauge™ and .032″ & .040″ aluminum
Custom 20 & 18 Tru-Gauge™ and .050″ & .063 aluminum, (please inquire)
Aluminum is recommended within 1000 ft of salt water (not required)
1′ to 45′ panel lengths
(Inquire for longer length panels)
20’11” long length flashings
(Inquire for longer length flashings)
1:12 minimum pitch recommended when installed with butyl sealant
OverEZee™ Retro-fit systems available
Roof and vertical or horizontal wall application
Standard trim, custom trim and accessory packages available
Color matched neoprene washered screws
Fiberglass panels available to match profile

Material Specifications

24 & 22 Tru-Gauge™ Kynar 500® Painted Steel G-90 Galvanized or ZINCALUME® AZ-50
.032″ & .040″ Kynar 500® Painted aluminum (please inquire)
24 & 22 Tru-Gauge™ bare ZINCALUME® Plus AZ-55 (no finish warranty – 25 year perforation warranty)
26 gauge ArmorTech™ Painted Steel
24 Tru-Gauge™ Bonderized
22 gauge Rusteel Plus™ (A606) – Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
Custom 20 & 18 Tru-Gauge™ and .050″ & .063″ aluminum (please inquire)
Kynar 500® (PVDF) and substrate testing data available
PVDF is a fluoropolymer that is manufactured under the trademarked names Kynar 500® and Duranar®(PPG). Paint finishes containing a minimum 70% PVDF resin meet the high-performance weathering criteria established by the American Architectural Manufacturing Association and are allowed to carry the Kynar500® trademarked name. ZINCALUME & ZINCALUME® Plus are registered trademarks of Bluescope Ltd. Galvalume® is a registered trademark of BIEC International, Inc. Vintage® is a registered trademark of Steelscape, Inc. Kynar® and Kynar 500® is a registered trademarks of Arkema, Inc.

Testing

UL 580 Class 90 – Wind Uplift
UL 790 Class A (ASTM E108) – Fire rated
UL 2218 Class 4 – Impact (hail) rated
ASTM A653/A924 – G-90 Galvanized
ASTM A792 – ZINCALUME®/Galvalume® AZ-50/55
ASTM B209 – Aluminum Substrate
ASTM D6578 – Anti-Graffiti
ASTM E283 – Air infiltration (wall)
ASTM E330 – Positive structural uniform static air pressure
ASTM E331 – Water infiltration (wall)
ASTM E1592 – Negative structural uniform static air pressure
ASTM E1646 – Water infiltration (roof)
ASTM E1680 – Air infiltration (roof)

Finishes

Limited Lifetime Kynar residential paint warranty
40-year commercial paint warranty
21 Standard Kynar 500® Colors, 5 Metallic Colors and 3 Specialized Colors
Vintage® has a color range that can vary from batch-to-batch and have directional variations
- For more information: click here
Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
- For more information: click here
16 ArmorTech™ colors, ZINCALUME® Plus and Galvanized
Color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
