Quick Downloads:

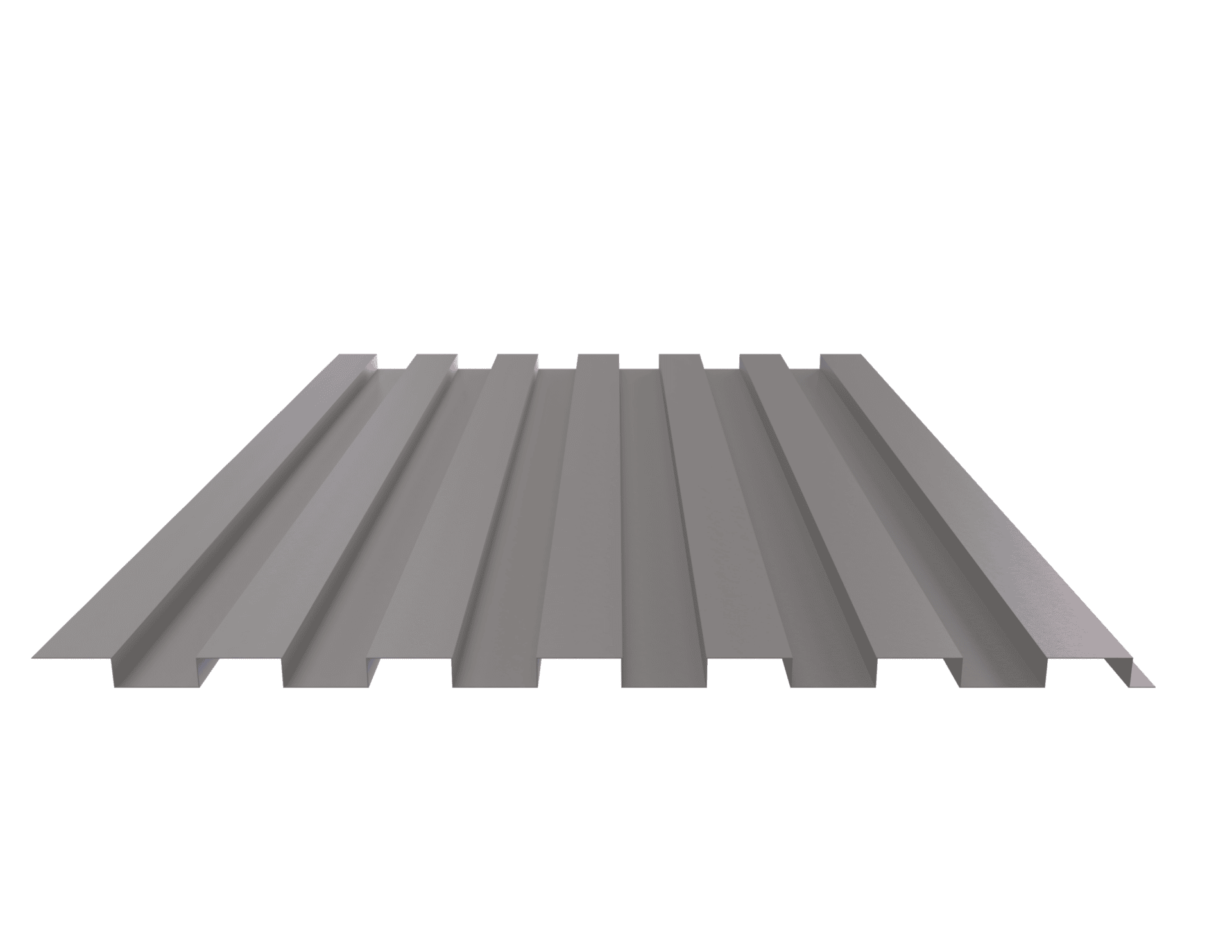

TMP .75-4-24

Features & Benefits

24 & 22 Tru-Gauge™ Kynar 500® (PVDF) Painted Steel G-90 Galvanized or AZ-50 ZINCALUME®
.032” & .040” Kynar 500® (PVDF) Painted Aluminum (please inquire)
24 and 22 Tru-Gauge™ bare ZINCALUME® Plus AZ-55 (No finish warranty – 25 yr. perforation warranty)
24 Tru-Gauge™ Bonderized
22 gauge Rusteel Plus™ (A606)
Custom 20 & 18 Tru-Gauge™ and .050” & .063” aluminum (please inquire)
16 & 20 oz. Copper (Inquire for availability and price)
Kynar 500® (PVDF) and substrate testing data available (See website)
PVDF is a fluoropolymer that is manufactured under the trademarked names Kynar 500® and Duranar®(PPG). Paint finishes containing a minimum 70% PVDF resin meet the high-performance weathering criteria established by the American Architectural Manufacturing Association and are allowed to carry the Kynar500® trademarked name. ZINCALUME® & ZINCALUME® Plus are registered trademarks of Bluescope Ltd. Galvalume® is a registered trademark of BIEC International, Inc. Vintage® is a registered trademark of Steelscape, Inc. Kynar® and Kynar 500® is a registered trademarks of Arkema, Inc.

21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
Kynar 500® (PVDF) Paint System – the ultimate in exterior durability and color retention
“Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
Superior quality, two coat, 70% resin finish, applied at a 1 mil. thickness
40 year residential paint warranty
40 year commercial paint warranty: Contact TMP for warranty specifications
“Oil Canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection
