X-Gard™ 1.0

Heavy-Duty, Single-Pipe Snow Retention

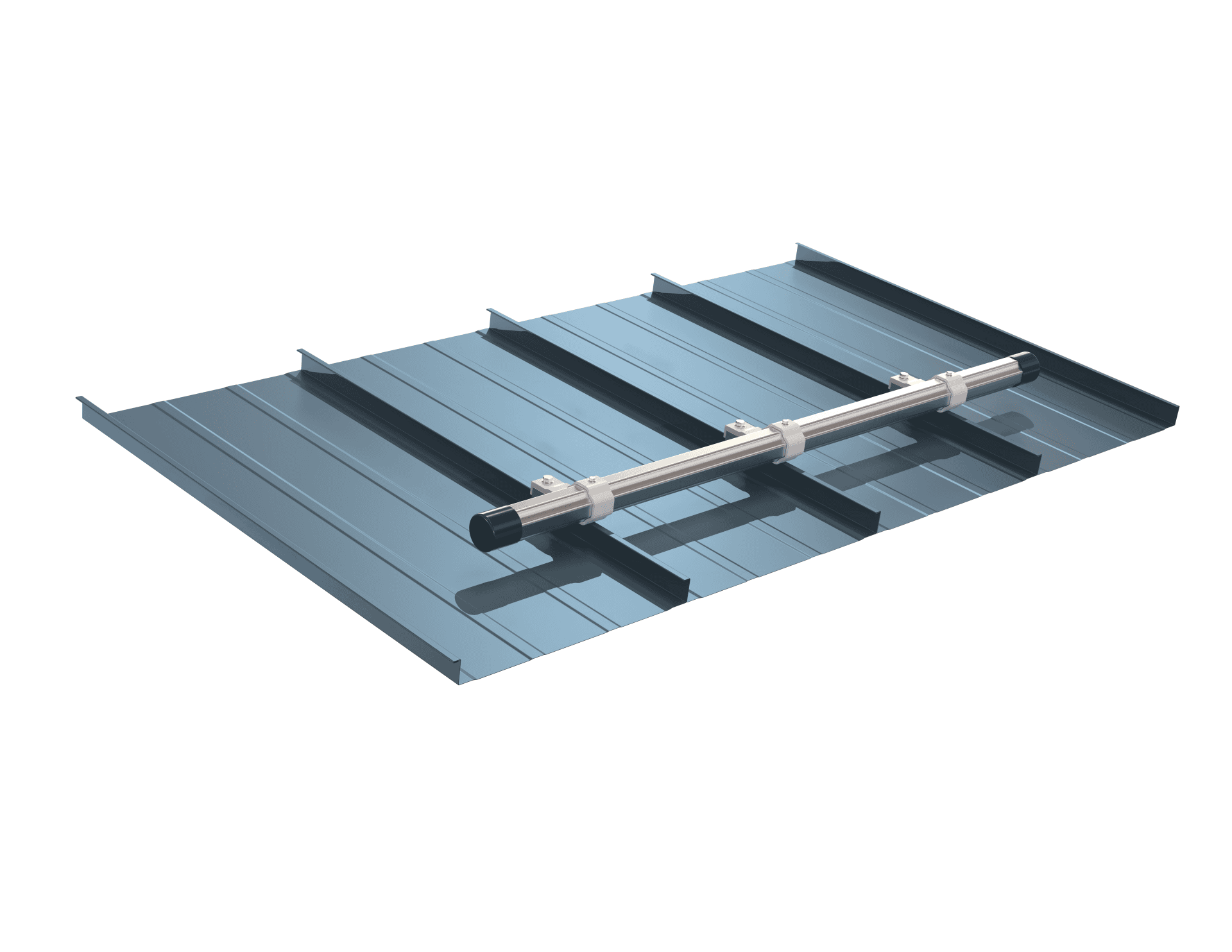

X-Gard™ 1.0 is a heavy-duty, single-pipe snow retention system for standing seam metal roofs. Its high-strength aluminum crossmember provides reliable snow retention using non-penetrating S-5! clamp attachments.

Features & Benefits

Heavy-Duty Design: Built for demanding snow-load applications.
Non-Penetrating: Attaches using compatible S-5! seam clamps.
High-Strength Crossmember: Octagonal aluminum pipe resists rotation.
Flexible Installation: Accommodates wider seam spacing and optional snow clips.

System Components:

NEX® Pipe with Splice
S-5! Standing Seam Clamps (See individual clamp pages to select the best attachment solution for your metal roof)
X-Gard™ 1.0 Bracket
Endcaps
X-Clip™ II or X-Clip™ III (Optional)

Testing

S-5! snow retention attachments are independently load-tested. System design and attachment requirements should be verified for each project’s roof profile and snow-load conditions.

Finishes

Mill-finish aluminum components can be painted, powder-coated, or anodized to complement the roof finish.

Roof Compatibility

Designed for standing seam metal roofing using compatible S-5! clamps. Clamp selection and system layout must be verified for the specific roof profile and project requirements.
