MaxRun-238™

The MaxRun-238 is a premium mechanical seam metal roofing panel from Taylor Metal Products, engineered for exceptional performance and versatility. Ideal for low-pitch roofs (suitable for a wide range of applications, Please Inquire for low-pitch roofs), this innovative panel supports nearly limitless panel lengths thanks to its advanced clip system that accommodates infinite thermal movement—eliminating concerns over expansion, contraction, or end laps on long runs.

(Coming Soon)
(Coming Soon)
Residential Limited Lifetime Warranty

Features & Benefits

  • Manufactured in Salem, OR, Sacramento, CA & Riverside, CA
  • 12”, 14”, 16”, 18” & 24” coverage options
  • 2-3/8” rib height
  • 24 & 22 Tru-Gauge™ steel and .032” & .040 aluminum (Inquire for aluminum)
  • Custom 20 & 18 Tru-Gauge™ steel and .050″ & .063″ aluminum (please inquire)
  • Aluminum is recommended within 1000 ft of salt water (not required)
  • Zinc Coil (inquire for thickness)
  • 1’ to 60’ panel lengths (Inquire for longer length panels)

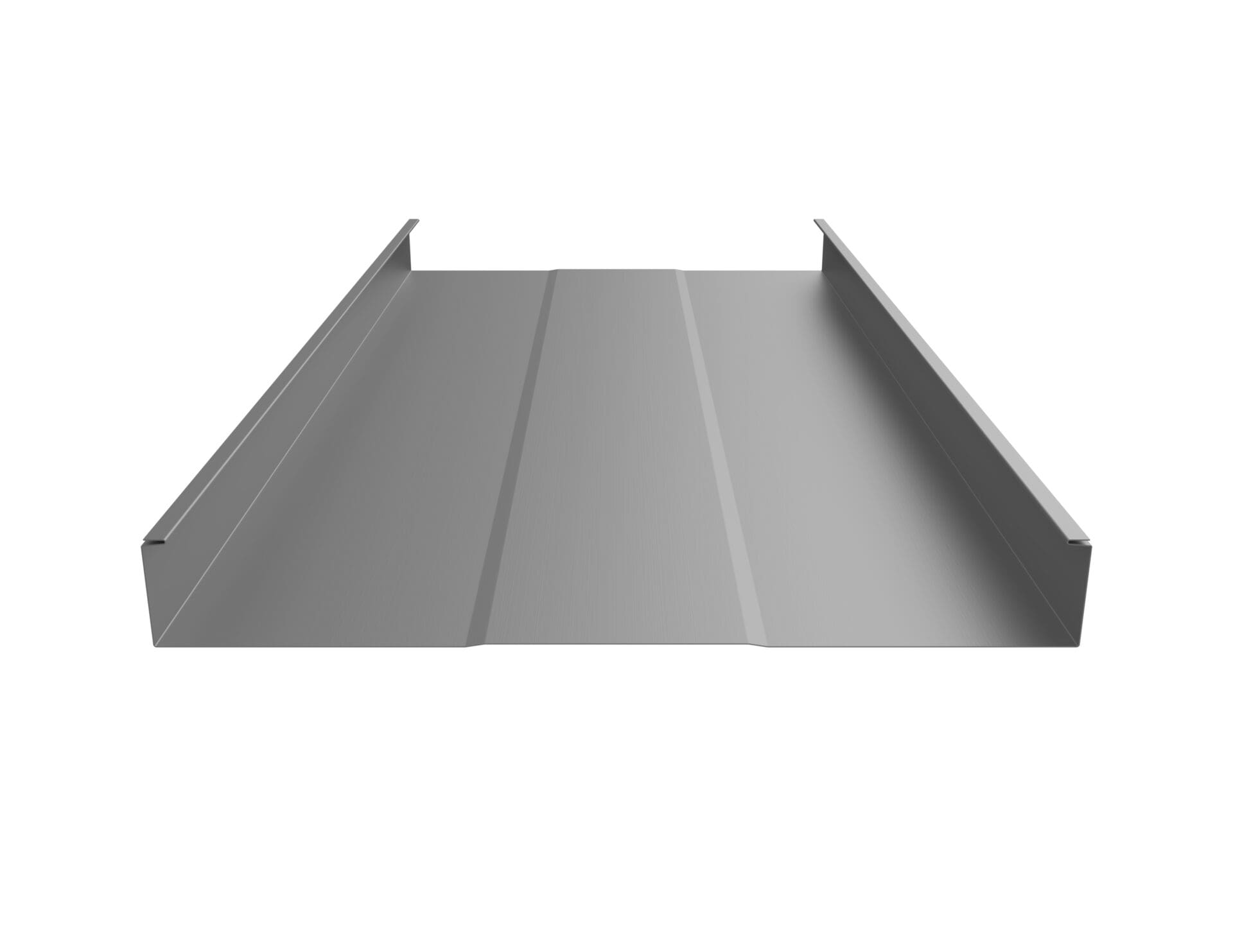

  • Panel options: Striations, Accent Rib, Flat Pan, Plateau Rib, Plateau Rib w/ Accent Ribs, Plateau Rib w/ V-Grooves, Striations w/ Clip Relief
  • 1/2:12 minimum pitch is recommended (Inquire for lower pitches)
  • Floating system: allows for unlimited expansion & contraction of panels in longer lengths
  • Factory injected Butyl sealant available
  • Clip Relief is not standard, available upon request
  • Weathertightness warranty available
    (Contact TMP representative for details)
  • OverEZee retro-fit system available
  • On-site roll forming available for longer panels
    (panel end laps and splices are not recommended)
  • Concealed fastener: fasteners cannot leak

Material Specifications

  • 24 & 22 Tru-gauge™ Kynar 500® (PVDF) Painted Steel G-90 Galvanized or ZINCALUME® AZ-50
  • .032″ & .040″ Kynar 500® (PVDF) Painted Aluminum (please inquire)
  • 24 & 22 gauge bare ZINCALUME® Plus AZ-55 (no finish warranty  – 25 year perforation warranty)
  • 24 Tru-gauge™ Bonderized
  • 22 gauge Rusteel Plus™ (A606)
  • 16 & 20 oz. Copper (Inquire for availability & price)
  • Kynar 500® (PVDF) and substrate testing data available (see website)
  • PVDF is a fluoropolymer that is manufactured under the trademarked names Kynar 500® and Duranar®(PPG). Paint finishes containing a minimum 70% PVDF resin meet the high-performance weathering criteria established by the American Architectural Manufacturing Association and are allowed to carry the Kynar500® trademarked name. ZINCALUME & ZINCALUME® Plus are registered trademarks of Bluescope Ltd. Galvalume® is a registered trademark of BIEC International, Inc. Vintage® is a registered trademark of Steelscape, Inc. Kynar® and Kynar 500® are registered trademarks of Arkema, Inc.

Testing

  • UL 580 Class 90 – Wind Uplift
  • UL 790 Class A (ASTM E108) – Fire rated
  • UL 2218 Class 4 – Impact (hail) rated
  • ASTM A653/A924 – G-90 Galvanized
  • ASTM A792 – ZINCALUME®/Galvalume® AZ-50/55
  • ASTM B209 – Aluminum Substrate
  • ASTM D6578 – Anti-Graffiti
  • ASTM E283- Air Infiltration (wall)
  • ASTM E331 – Water Infiltration (wall)
  • ASTM E1514 – Standard for Structural Standing steel roof panels systems
  • ASTM E1592 – Structural uniform static air pressure
  • ASTM E1646 – Water Infiltration (roof)
  • ASTM E1680 – Air Infiltration (roof)
  • ASTM E2140 – Standard Test Method for Water Penetration (full immersion)

Finishes

  • Limited Lifetime residential paint warranty
  • 40 year commercial paint warranty
  • 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
  • Vintage® has a color range that can vary from batch-to-batch and have directional variations
  • Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
  • Kynar 500® (PVDF) Paint System-the ultimate in exterior durability and color retention
  • “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
  • Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
  • “Oil Canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection

   DI SEAMER RENTAL: click here

DI SEAMER Standard Rental Guidelines: click here

• 180 degree seams are not considered an architectural detail. The detail improves the weather tightness and wind uplift capabilities of the panel system, but will show stress and waviness in the seam. The detail is recommended for slopes less than 3/12, roof areas not easily viewed from the ground, and for high wind areas. For additional information, contact a TMP representative and DI Seamers for support and information about the proper use of seaming tools.



  TAYLOR METAL PRODUCTS SEAMERS RENTAL: click here

QUALITY ROOF SEAMERS Rental Prices: click here

• 180 degree seams are not considered an architectural detail. The detail improves the weather tightness and wind uplift capabilities of the panel system, but will show stress and waviness in the seam. The detail is recommended for slopes less than 3/12, roof areas not easily viewed from the ground, and for high wind areas. For additional information, contact a TMP representative and Quality Roof Seamers for support and information about the proper use of seaming tools.
