Classic 7/8″ Corrugated™

Produced in Riverside

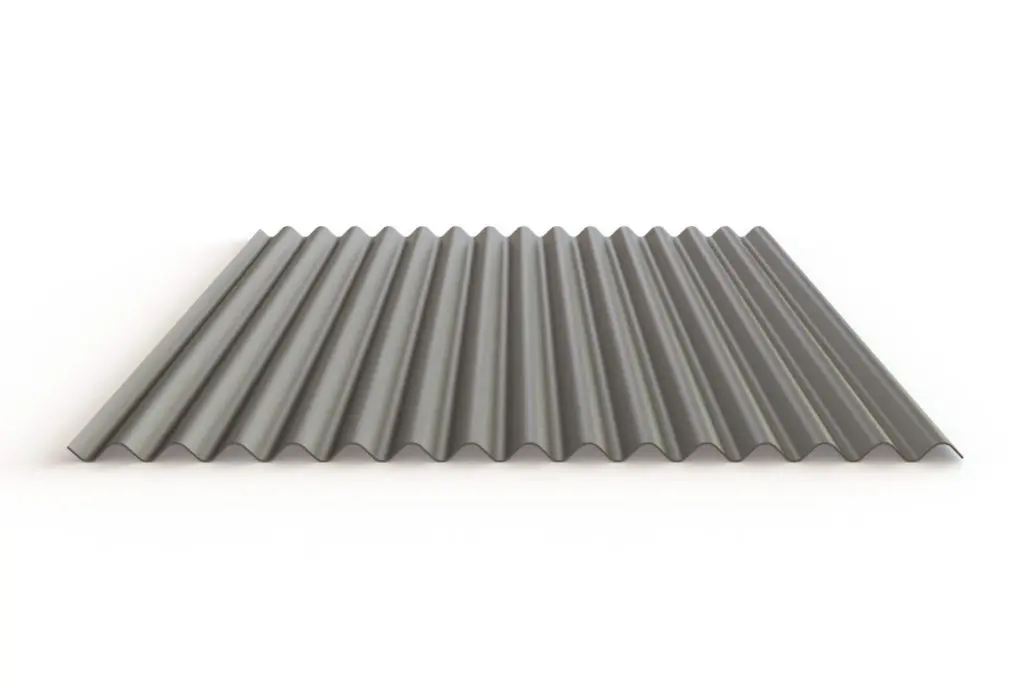

Classic 7/8″ Corrugated™ Panel is an economical, structural, exposed fastener metal roof and wall panel. Deep corrugations allow for aesthetically pleasing shadow lines, making it an excellent choice for siding and roofing applications.

ICC-ESR #5045 with CBC-CRC Supplement

ICC-ESR #5046 with CBC-CRC Supplement

UL Evaluation Report UL ER #25913-01

Residential Limited Lifetime Warranty

Features & Benefits

Manufactured in Riverside, CA
37-1/3″ panel coverage
7/8″ rib height
24 & 22 Tru-Gauge™ and .032” & .040” aluminum
Custom 20 Tru-Gauge™ and .050″ & .063″ aluminum
Aluminum is recommended within 1000 ft of salt water (not required)
1’ to 45’ panel length (Inquire for longer length panels)
20’ 11” long length flashings (Inquire for longer length flashing)
1:12 minimum pitch recommended when installed with butyl sealant
OverEZee™ Retro-fit systems available
Fiberglass panels available to match profile
Roof and vertical or horizontal wall application
Standard trim, custom trim and accessory packages available
Color matched neoprene washered screws

Material Specifications

24 & 22 Tru-Gauge™ Kynar 500® (PVDF) Painted Steel G-90 Galvanized or ZINCALUME® AZ-50
.032” & .040″ Kynar 500® (PVDF) Painted aluminum (please inquire)
24 & 22 Tru-Gauge™ bare ZINCALUME® Plus AZ-55 (No finish warranty – 25 yr. perforation warranty)
24 Tru-Gauge™ Bonderized
22 gauge Rusteel Plus™ (A606)
Custom 20 Tru-Gauge™ and .050” & .063” aluminum (please inquire)
16 & 20 oz. Copper (Inquire for availability & price)
Kynar 500® (PVDF) and substrate testing data available
PVDF is a fluoropolymer that is manufactured under the trademarked names Kynar 500® and Duranar®(PPG). Paint finishes containing a minimum 70% PVDF resin meet the high-performance weathering criteria established by the American Architectural Manufacturing Association and are allowed to carry the Kynar500® trademarked name. ZINCALUME & ZINCALUME® Plus are registered trademarks of Bluescope Ltd. Galvalume® is a registered trademark of BIEC International, Inc. Vintage® is a registered trademark of Steelscape, Inc. Kynar® and Kynar 500® are registered trademarks of Arkema, Inc.

Testing

ICC-ESR #5045 & #5046 with CBC-CRC Supplement
Code compliance UL Evaluation Report UL ER #25913-01. Construction No. 649
UL 580 Class 90 – Wind Uplift
UL 790 Class A (ASTM E108) – Fire rated
UL 2218 Class 4 – Impact (hail) rated
ASTM A653/A924 – G-90 Galvanized
ASTM A792 – ZINCALUME®/Galvalume® AZ-50/55
ASTM B209 – Aluminum Substrate
ASTM D6578 – Anti-Graffiti
ASTM E283 – Air infiltration (wall)
ASTM E330 – Positive structural uniform static air pressure
ASTM E331 – Water infiltration (wall)
ASTM E1592 – Negative structural uniform static air pressure
ASTM E1646 – Water infiltration (roof)
ASTM E1680 – Air infiltration (roof)

Finishes

Limited Lifetime residential paint warranty
40-year commercial paint warranty
21 Standard Kynar® Colors, 5 Metallic Colors and 3 Specialized Colors
Vintage® has a color range that can vary from batch-to-batch and have directional variations
- For more information: click here
Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
- For more information: click here
Kynar 500® (PVDF) Paint System – the ultimate in exterior durability and color retention
Color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
“Oil canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection
