Slim-Lock™

Produced in Salem

The Slim-Lock™ Standing Seam delivers a panel with strong, clean, continuous grace, together with unequaled quality. This provides you a weather tight roof to last a lifetime. Clip systems allow for extremely long panels, without the need for laps.

ICC-ESR #5046 with CBC-CRC Supplement
Code Compliance UL Evaluation Report UL ER25913-01
Residential Limited Lifetime Warranty

Features & Benefits

  • Manufactured in Salem, OR
  • 12″, 16″, & 20″ nominal panel coverages (24 ga only)
  • 1-1/2″ Rib height
  • 24 & 22 gauge Tru-Gauge™ steel
  • Aluminum is recommended within 1000 ft of salt water (not required)
  • 16 & 20 oz. Copper (Inquire for availability & price)
  • 3′ to 60′ panel lengths
    (Inquire for longer length panels)

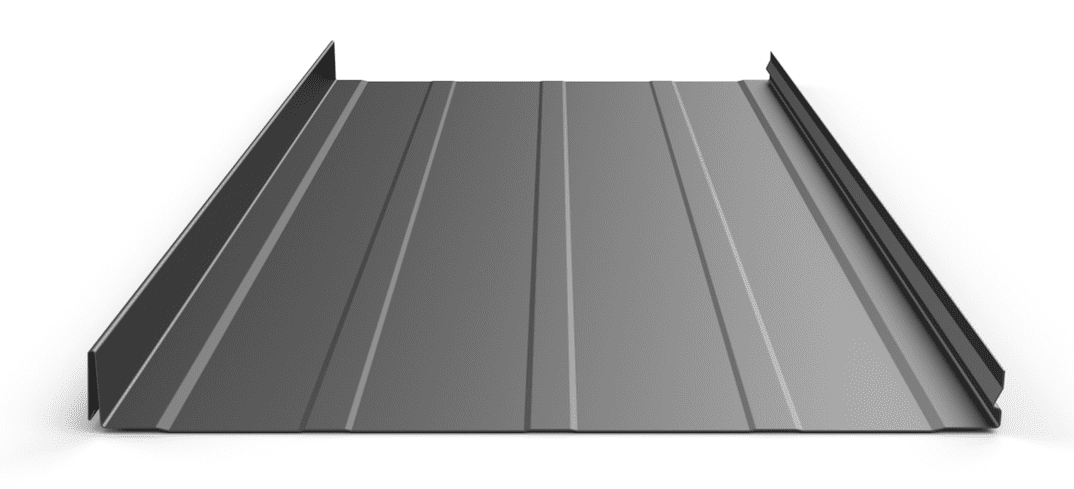

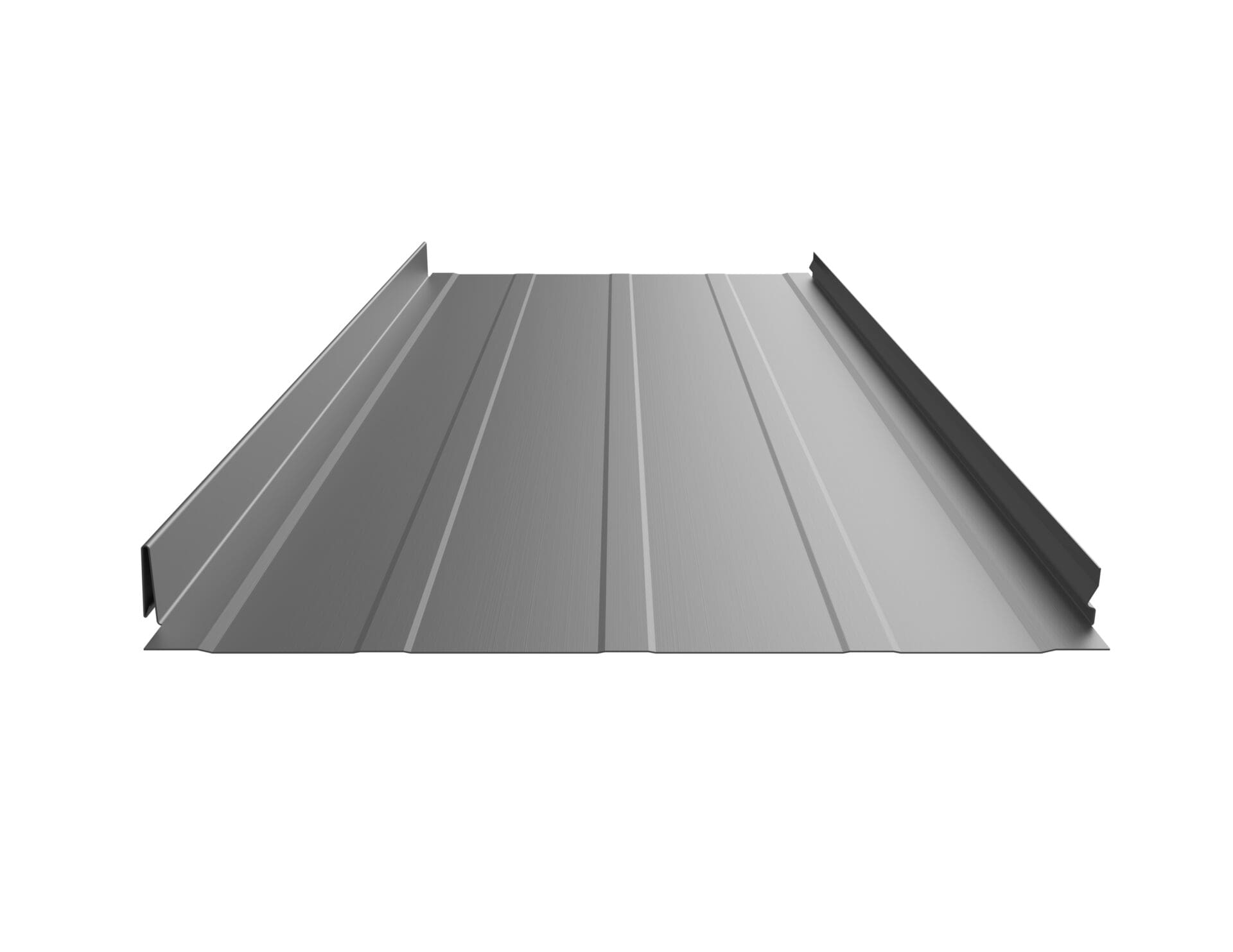

  • Panel options: Striations, Accent Ribs, Flat Pan
  • 3:12 minimum pitch recommended (Inquire for lower pitches)
  • Floating clip system: allows for expansion & contraction of panels in longer lengths
  • Standard factory notched panels
  • Onsite roll forming available for longer panels
    (panel end laps and splices are not recommended)
  • Concealed fasteners: fasteners cannot leak
  • 2′ Shortcut capability (fee applicable)

Material Specifications

  • 24 & 22 Tru-gauge™ Kynar 500® (PVDF) Painted Steel G-90 Galvanized or ZINCALUME® AZ-50
  • 24 & 22 gauge bare Zincalume® Plus AZ-55 Per  (No finish warranty  – 25 year perforation warranty)
  • 16 & 20 oz. Copper (Inquire for availability & price)
  • Kynar 500® (PVDF) and substrate testing data available
  • PVDF is a fluoropolymer that is manufactured under the trademarked names Kynar 500® and Duranar®(PPG). Paint finishes containing a minimum 70% PVDF resin meet the high-performance weathering criteria established by the American Architectural Manufacturing Association and are allowed to carry the Kynar500® trademarked name. ZINCALUME® & ZINCALUME® Plus are registered trademarks of Bluescope Ltd. Galvalume® is a registered trademark of BIEC International, Inc. Vintage® is a registered trademark of Steelscape, Inc. Kynar® and Kynar 500® is a registered trademarks of Arkema, Inc.

Testing

  • UL Construction No. 589 (Slim-Lock™ carries its UL Classifications under Clip-Lock 150 (CA) profile designation)
  • UL 580 Class 90 – Wind uplift
  • UL 790 Class A Fire rated
  • UL 2218 Class 4 – Impact (hail) rated
  • ASTM A653/A924 – G-90 Galvanized
  • ASTM A792 – ZINCALUME®/Galvalume AZ-50/55
  • ASTM B209 – Aluminum Substrate
  • ASTM D6578 – Anti-Graffiti
  • ASTM E2886 – Ember Resistant ridge/endwall/peak flashings available

Finishes

  • Limited Lifetime residential paint warranty
  • 40 year commercial paint warranty
  • 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
  • Vintage® has a color range that can vary from batch-to-batch and have directional variations
  • Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
  • Kynar 500® (PVDF) Paint System – the ultimate in exterior durability and color retention
  • “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
  • Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
  • “Oil Canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection
