T-3™

Produced in Salem

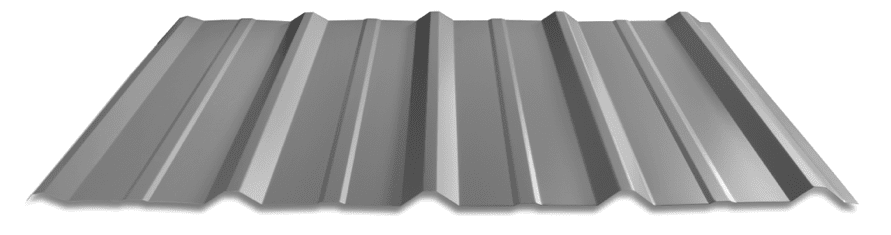

T-3™ Panel is a light gauge exposed fastener panel with 3/4″ high ribs, 9″ on center, with a 36″ net coverage. This is the roof and wall panel of choice for the Pacific Northwest Region.

Roof & Siding: T-3™ | Glacier White & Tile Red



UL Evaluation Report UL ER #25913-01
California Department of Forestry & Fire Protection
Playback
Speed
Quality
Loop
Captions
Accessibility
Announcements

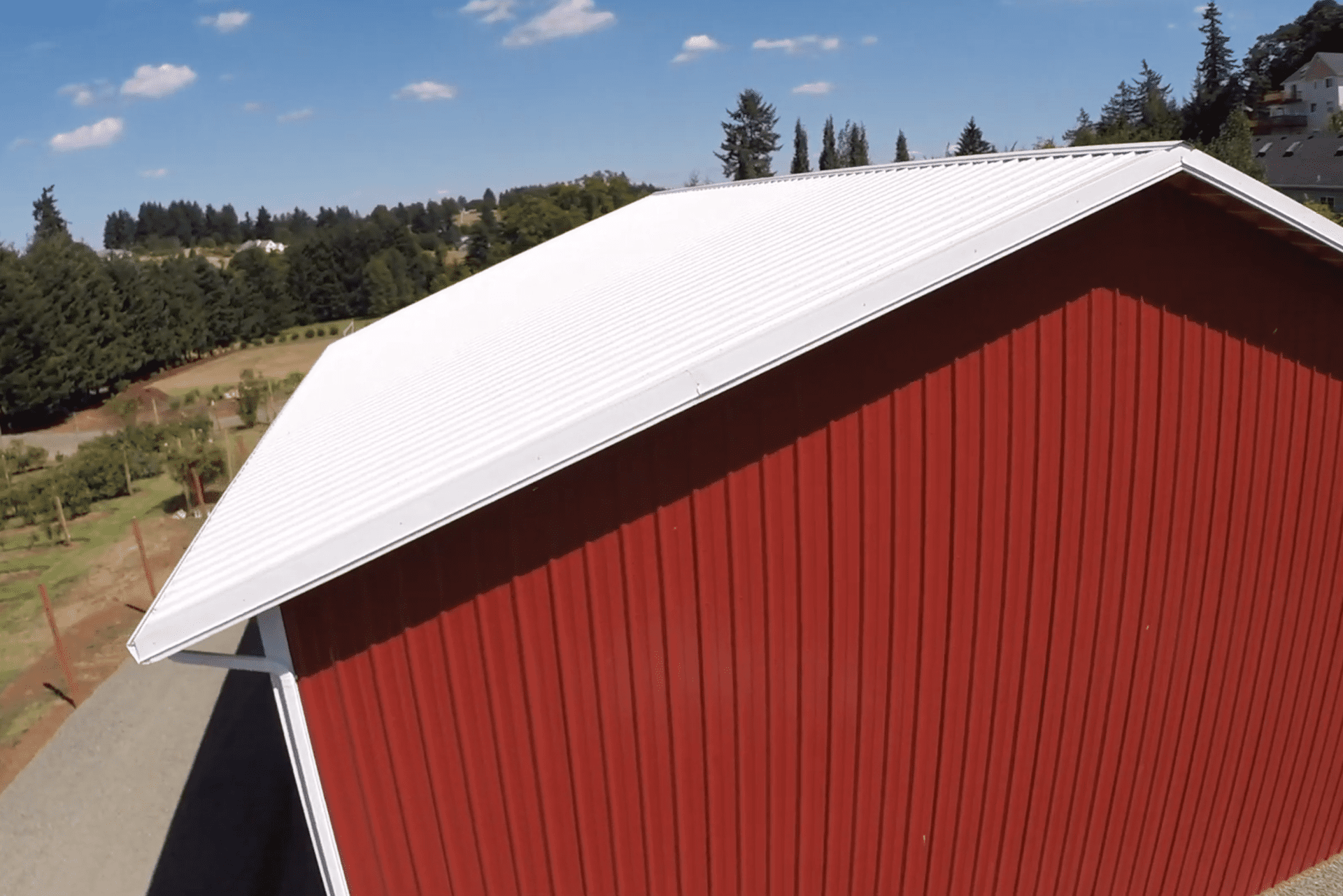

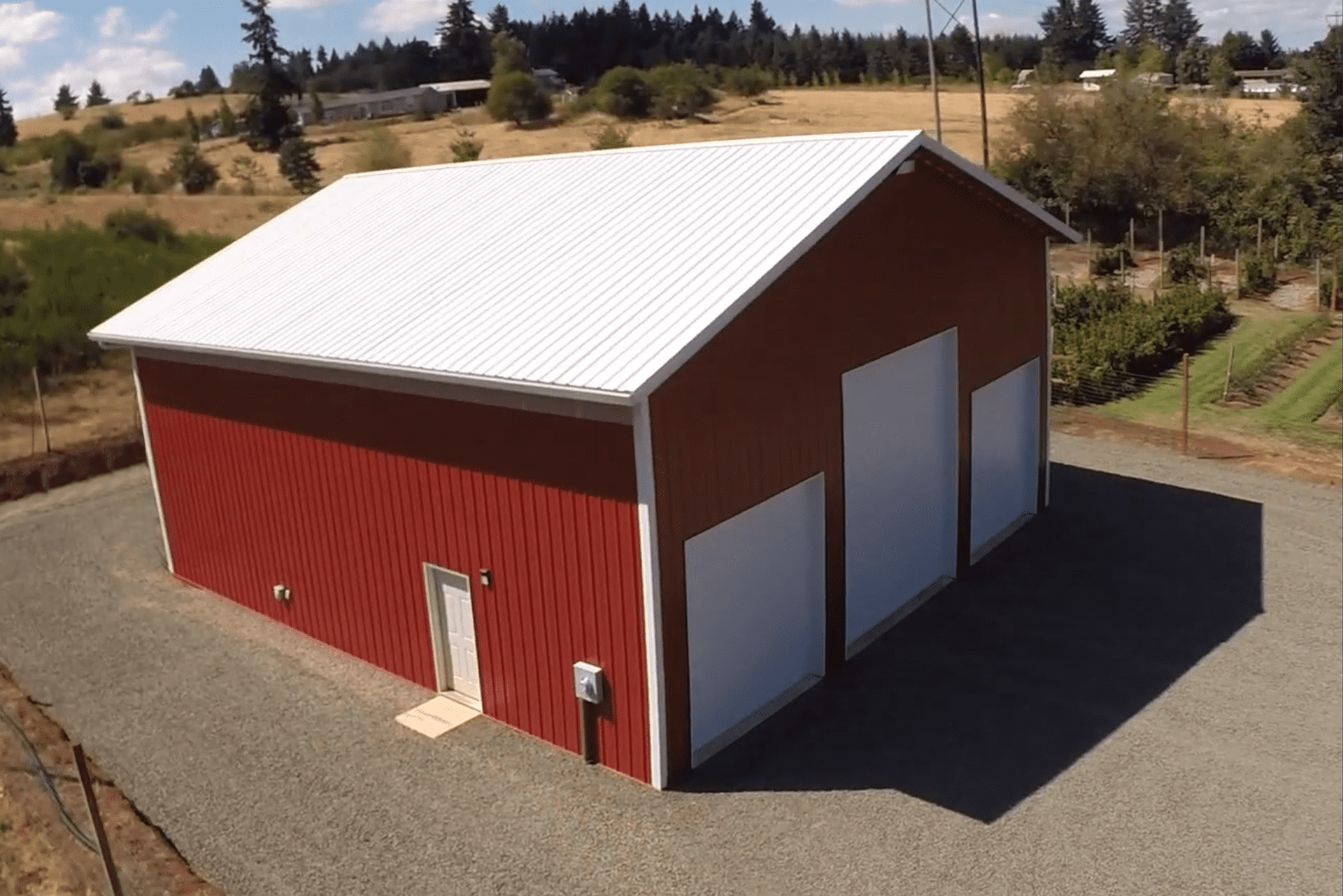

T-3™ Is Installed on the Roof and Siding of This Pole Barn:

Features & Benefits

  • Manufactured in Salem OR.
  • 29, 26, 24 and Tru-Gauge™ and .032” Aluminum and Rusteel Plus™
  • 3:12 minimum pitch recommended when installed with butyl sealant
  • Custom lengths 1’ to 45’ (For longer length panels, please inquire)
  • Long length flashings available up to 20’ 11” (for longer length flashing, please inquire)
  • Standard trim, custom trim and accessory packages available
  • Color matched neoprene washered screws
  • Roof and Vertical or Horizontal Wall application
  • Fiberglass & Polycarbonate panels available to match profile
  • OverEZee™ Retro-fit systems available

Material Specifications

  • 29 gauge ArmorTech™ Painted Steel
  • 26 gauge ArmorTech™ Painted Steel
  • 24 and 22 Tru-Gauge™ Kynar 500® Painted Steel
  • .032″ Kynar 500® Painted Aluminum
  • 24 Tru-Gauge™ G-90 Galvanized or AZ-50
  • 24 & 22 gauge bare ZINCALUME® Plus AZ-55 (no finish warranty  – 25 year perforation warranty)
  • G-90 Galvanized or AZ-50
  • .040″ Kynar 500® Painted Aluminum (please inquire)
  • 24 Tru-Gauge™ Bonderized
  • 22 gauge Rusteel Plus™ (A606) (No finish warranty – no perforation warranty)
  • Kynar 500® and substrate testing data available

Testing

  • Code compliance UL Evaluation Report UL ER #25913-01
  • UL 790 Class A (ASTM E108) – Fire rated
  • UL 2218 Class 4 – Impact (hail) rated
  • ASTM E1680 – Air infiltration (roof)
  • ASTM E1646 – Water infiltration (roof)
  • ASTM E331 – Water infiltration (wall)
  • ASTM E283 – Air infiltration (wall)
  • ASTM E455-19 – Shear and Diaphragm (For engineering data, please inquire)
  • ASTM A653/A924 – G90 Galvanized
  • ASTM A792 – ZINCALUME/Galvalume AZ-50/55

Finishes

  • 29 & 26 gauge ArmorTech™ Painted Steel
  • 24 &    22 Tru-Gauge™ Kynar 500® (PVDF) Painted Steel G-90 Galvanized or AZ-50 ZINCALUME®
  • .032” & .040” Kynar 500® (PVDF) Painted aluminum
  •  Limited Lifetime residential paint warranty
  • 40 year commercial paint warranty
  • 21 Standard Colors, 5 Metallic Colors and 4 Specialized Materials
  • Kynar 500® (PVDF) Paint System – the ultimate in exterior durability and color retention
  • “Cool” color pigments are specially designed to reflect infrared light,  reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
  • Superior quality, two coat, 70% resin finish, applied at a 1 mil. thickness
  • “Oil Canning” is an inherent characteristics of roof and wall products, and not a defect, which is not  a cause for panel rejection.
