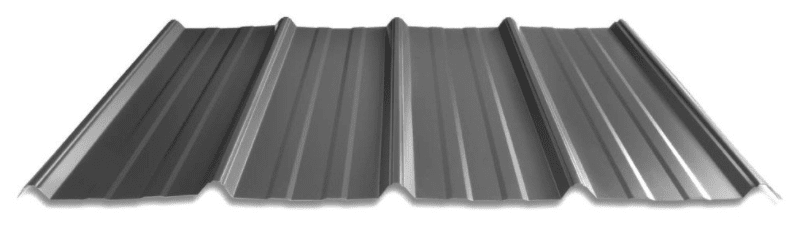

Tuff Rib

Produced in OR & CA

Tuff Rib Panel is an economical, structural, light gauge through-fastener roof and wall panel that is an excellent choice for commercial, industrial and agricultural applications.

UL Evaluation Report UL ER #25913-01
California Department of Forestry & Fire Protection

Features & Benefits

  • Manufactured in Salem OR and Riverside CA
  • 29 and 26 Tru-Gauge™
  • 3:12 minimum pitch recommended when installed with butyl sealant
  • Custom lengths 1’ to 45’ (For longer length panels, please inquire)
  • Long length flashings available up to 20’ 11”            (for longer length flashing, please inquire)
  • Standard trim, custom trim and accessory packages available
  • Color matched neoprene washered screws
  • Roof and Vertical or Horizontal Wall application
  • Fiberglass & Polycarbonate panels available to match profile
  • OverEZee™ Retro-fit systems available

Material Specifications

  • 26 gauge ArmorTech™ Painted Steel .019″ (thickness prior to painting) G-90 Galvanized or ZINCALUME® AZ-50 Per ASTM A-792
  • 29 gauge ArmorTech™ Painted Steel .014″ (thickness prior to painting) G-90 Galvanized or ZINCALUME® AZ-50 Per ASTM A-792
  • 29 and 26 gauge ZINCALUME® Plus AZ-55 Per ASTM A-792 (no finish warranty  – 25 year perforation warranty)
  • 29 & 26 gauge G-90 Galvanized Steel (no finish warranty – no perforation warranty)
  • .032 Kynar 500® Painted Aluminum: Select colors, please inquire for details

Testing

  • Code compliance UL Evaluation Report UL ER #25913-01
  • UL 790 Class A (ASTM E108) – Fire rated
  • UL 2218 Class 4 – Impact (hail) rated
  • ASTM E1680 – Air infiltration (roof)
  • ASTM E1646 – Water infiltration (roof)
  • ASTM E1592 – Negative structural uniform static air pressure
  • ASTM E330 – Positive structural uniform static air pressure
  • ASTM E331 – Water infiltration (wall)
  • ASTM E283 – Air infiltration (wall)
  • ASTM A653/A924 – G90 Galvanized
  • ASTM A792 – ZINCALUME®/Galvalume AZ-50/55
  • ASTM E455-19 – Shear and Diaphragm. (For engineering data, please inquire)

Finishes

  • 21 Standard Colors, ZINCALUME® and Galvanized G-90
  •  ArmorTech™ Paint System – excellent in exterior durability
  •  “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to
  •   dwelling, and conform with ENERGY STAR® criteria
  •  Superior Quality, two coat SMP resin system at 1 mil. thickness
  •  40-year residential paint warranty

                      • fading

                      • chalking

                      • chipping

                      • cracking

                      • peeling
