Features & Benefits
- 12″ coverage option
- 24 & 22 gauge Tru-gauge™ and .032 & .040 Aluminum
- Substrate: ASTM A653 / A792
- Aluminum recommended within 1000 ft of salt water (not required)
- Custom Lengths 3′ to 35′
- (Inquire for longer or shorter lengths)
- For panels over 14 ft. in length, please inquire with a TMP Representative. Consider thermal movement, points of attachment, and substrate. Longer panel lengths are more difficult to install as they can change shape, cause distortion (“oil canning”), and are vulnerable to “folding” or other damage.
- 2′ Shortcut capability (Fee applicable)
- Concealed Fasteners: fasteners cannot leak
- 6.16 sq. inch (4.2%) free air flow per lineal foot of perforated panel
- Versatile in wall and soffit applications
- Panels being installed on open frame building, inquire

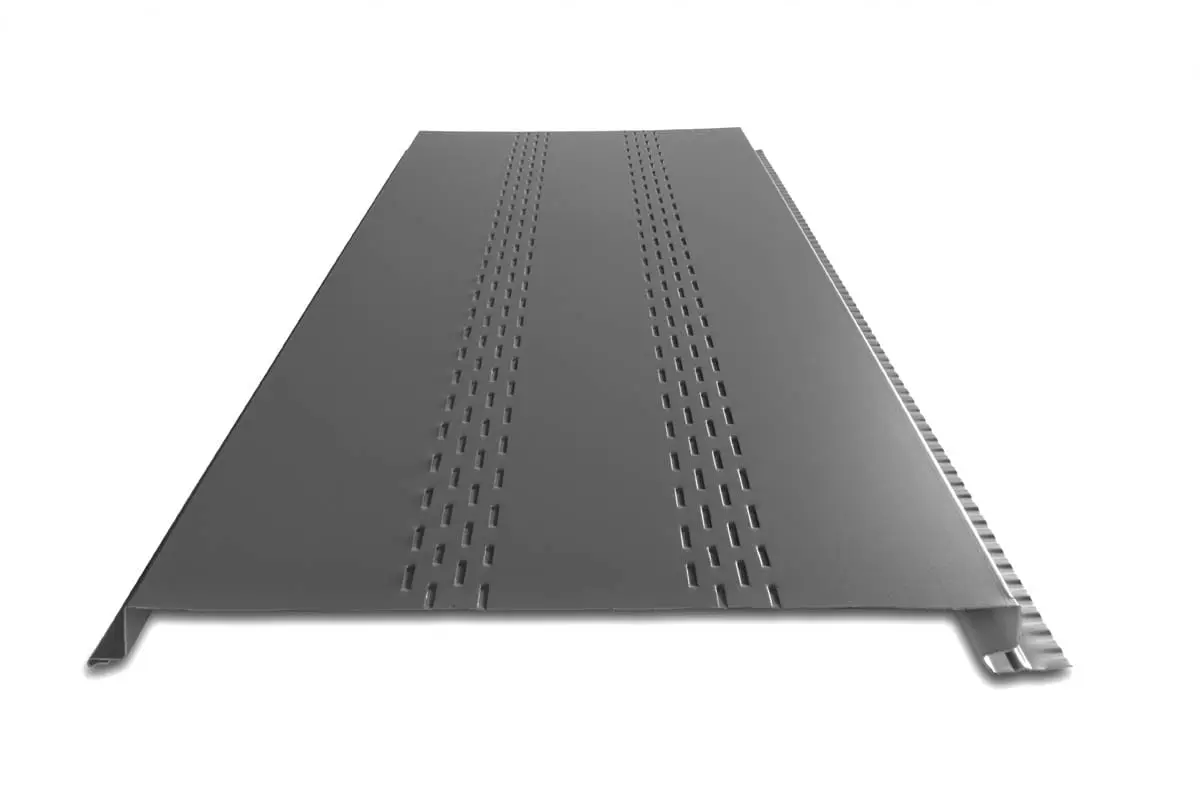

- Panel options: Vented, Striations, Single V-Groove,

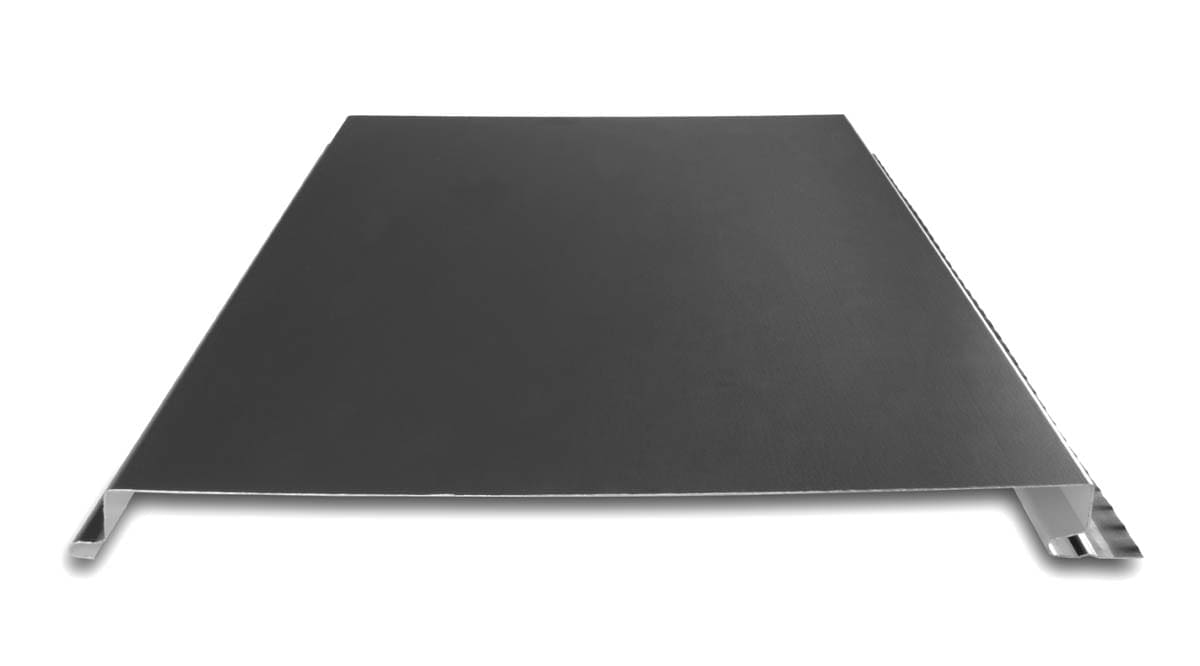

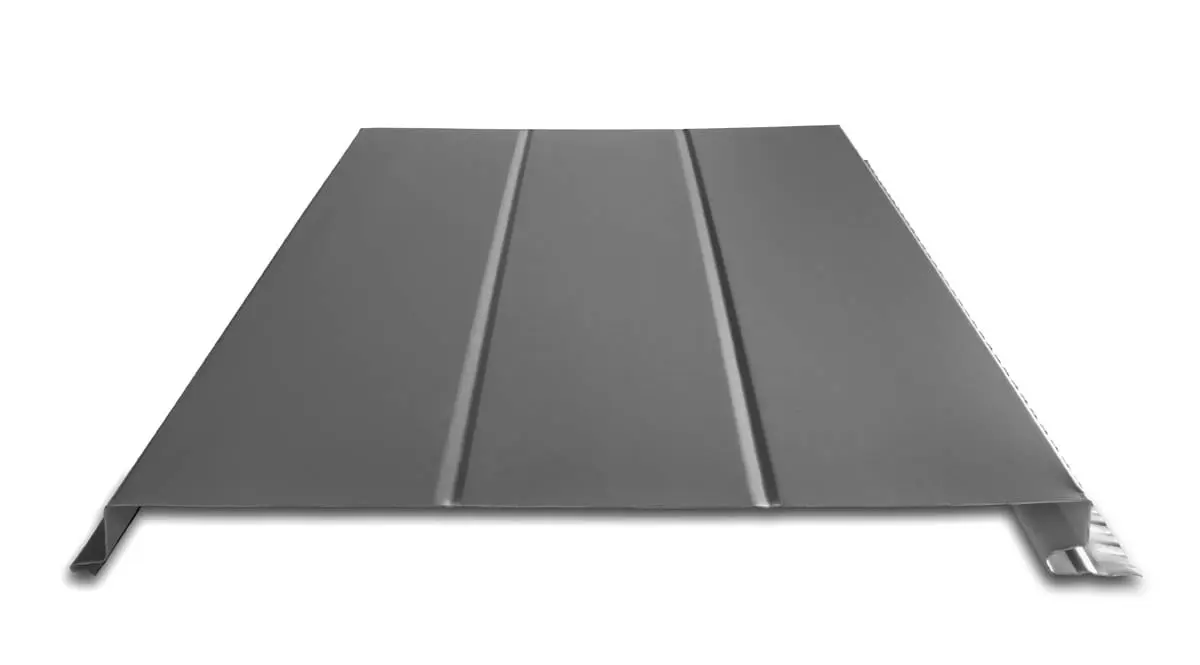

- Double V-Groove, and Flat Pan
