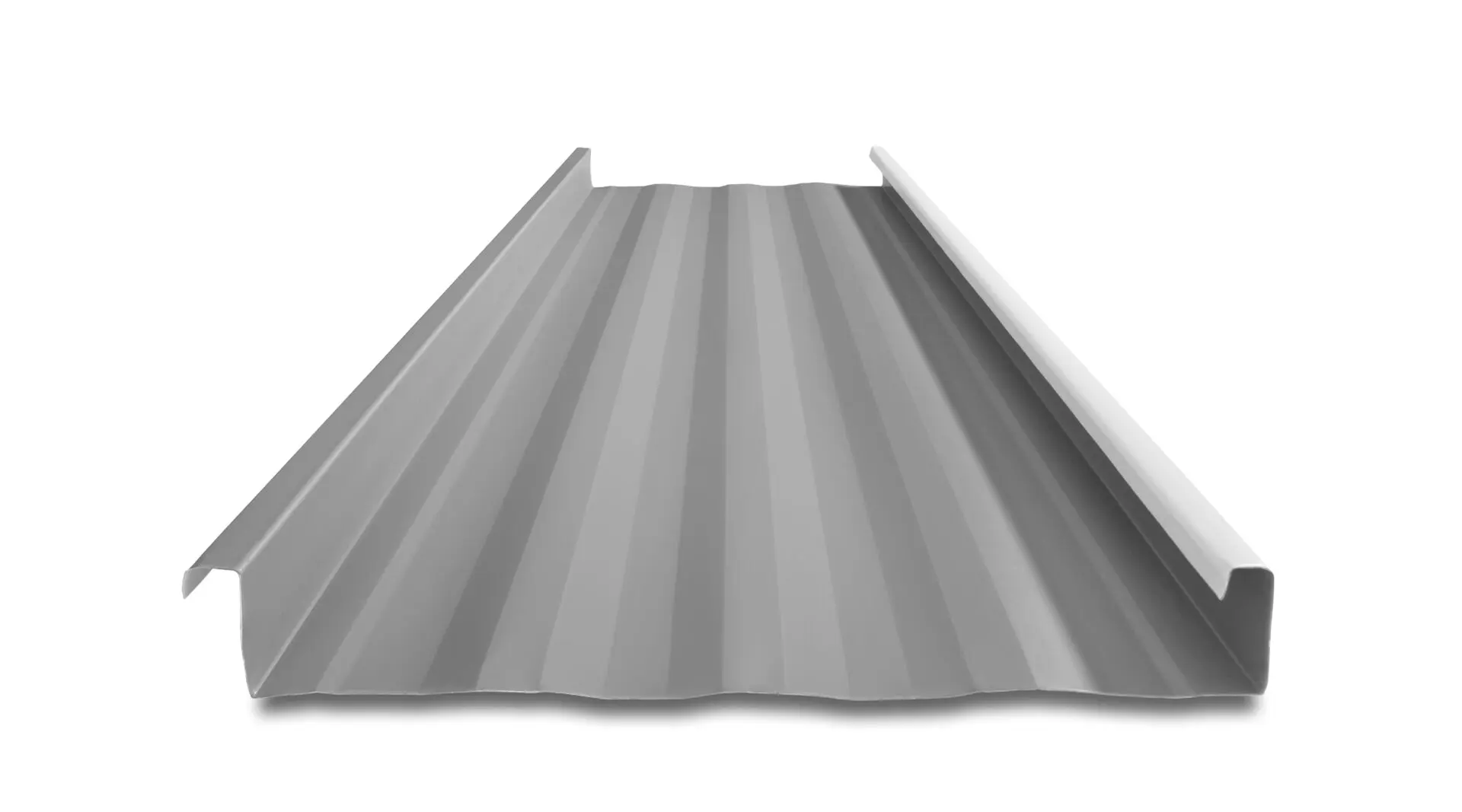

MS-200™

The MS-200™ panel is a fully crimped Standing Seam roof that is perfect for low slope roofs in any environment. The butyl injected seam prevents water from entering the system. Giving you a worry free roof for a lifetime. The system is a strong, durable, versatile, and perfect for long length roofs panels.

ICC-ESR #5046 with CBC-CRC Supplement
UL Evaluation Report UL ER25913-01
Residential Limited Lifetime Warranty

Features & Benefits

  • Manufactured in Salem OR, Riverside CA and Sacramento CA
  • 12″, 14″, 16″ & 18″ coverage options
  • 2″ rib height
  • 24 & 22 Tru-Gauge™ steel and .032″ & .040″ aluminum
  • Aluminum is recommended within 1000 ft of salt water (nor required)
  • Zinc Coil (Inquire for thickness)
  • 5′ to 60′ panel lengths – not notched
    1′ to 60′ panel lengths – notched
    (Inquire for longer panels)
  • Panel options: Striations, Accent Ribs, Flat Pan
  • ½:12 minimum pitch recommended (Inquire for lower pitches)
  • Floating clip system: allows for expansion & contraction of panels in longer lengths
  • Factory injected Butyl sealant available
  • Factory notching available
  • Clip relief is not standard, available upon request
  • Weathertightness warranty available (Contact TMP representative for details)
  • OverEZee retro-fit system available
  • On-site roll forming available for longer panels
    (panel end laps and splices are not recommended)
  • Concealed fasteners: fasteners cannot leak
  • MS-200™ FM Approvals Class: 4471

Material Specifications

  • 26, 24 & 22 Tru-gauge™ Kynar 500® (PVDF) Painted Steel G-90 Galvanized or ZINCALUME® AZ-50
  • 26, 24 & 22 gauge bare ZINCALUME® Plus AZ-55 (No finish warranty  – 25 year perforation warranty)
  • .032″ Kynar 500® (PVDF) Painted aluminum
  • 16 & 20 oz. Copper (Inquire for availability & price)
  • Kynar 500® (PVDF) and substrate testing data available (see website)
  • PVDF is a fluoropolymer that is manufactured under the trademarked names Kynar 500® and Duranar®(PPG). Paint finishes containing a minimum 70% PVDF resin meet the high-performance weathering criteria established by the American Architectural Manufacturing Association and are allowed to carry the Kynar500® trademarked name. ZINCALUME & ZINCALUME® Plus are registered trademarks of Bluescope Ltd. Galvalume® is a registered trademark of BIEC International, Inc. Vintage® is a registered trademark of Steelscape, Inc. Kynar® and Kynar 500® are registered trademarks of Arkema, Inc.

Testing

  • UL Construction No. 90, 176, 180, 238, 238A, 238B, 238C, 312, 335, 403, 435, 435 A, 437, 449, 451, 487, 506, 506A, 506B, 576, 577, 583, 608 & 610
  • UL 580 Class 90 – Wind Uplift
  • UL 790 Class A (ASTM E108) – Fire rated
  • UL 2218 Class 4 – Impact (hail) rated
  • FM Class 4471 – 1-75/120 wind uplift, Class A fire spread, severe hail & foot traffic
  • ASTM A653/A924 – G-90 Galvanized
  • ASTM A792 – ZINCALUME®/Galvalume® AZ-50/55
  • ASTM B209 – Aluminum Substrate
  • ASTM D6578 – Anti-Graffiti
  • ASTM E283- Air Infiltration (wall)
  • ASTM E331 – Water Infiltration (wall)
  • ASTM E1592 – Structural uniform static air pressure
  • ASTM E1646 – Water Infiltration (roof)
  • ASTM E1680 – Air Infiltration (roof)
  • ASTM E2140 – Standard Test Method for Water Penetration (full immersion)
  • ASTM E2886 – Ember Resistant ridge/endwall/peak flashings available

Finishes

  • Limited Lifetime residential paint warranty
  • 40 year commercial paint warranty
  • 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
  • Vintage® has a color range that can vary from batch-to-batch and have directional variations
  • Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
  • Kynar 500® (PVDF) Paint System-the ultimate in exterior durability and color retention
  • “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
  • Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
  • “Oil Canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection

   DI SEAMER RENTAL: click here

DI SEAMER Standard Rental Guidelines: click here

• 180 degree seams are not considered an architectural detail. The detail improves the weather tightness and wind uplift capabilities of the panel system, but will show stress and waviness in the seam. The detail is recommended for slopes less than 3/12, roof areas not easily viewed from the ground, and for high wind areas. For additional information, contact a TMP representative and DI Seamers for support and information about the proper use of seaming tools.



  TAYLOR METAL PRODUCTS SEAMERS RENTAL: click here

QUALITY ROOF SEAMERS Rental Prices: click here

• 180 degree seams are not considered an architectural detail. The detail improves the weather tightness and wind uplift capabilities of the panel system, but will show stress and waviness in the seam. The detail is recommended for slopes less than 3/12, roof areas not easily viewed from the ground, and for high wind areas. For additional information, contact a TMP representative and Quality Roof Seamers for support and information about the proper use of seaming tools.
