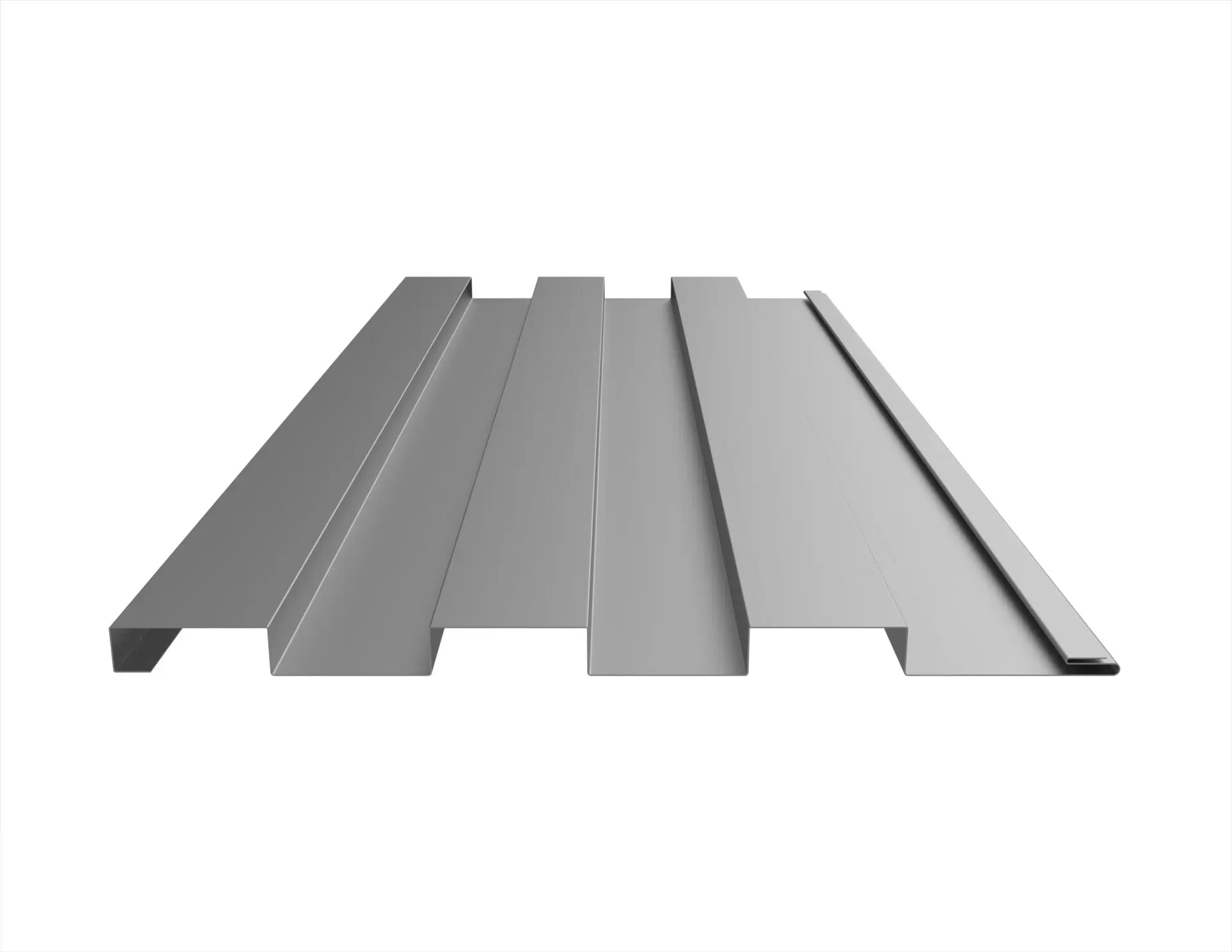

CT-2

Formerly known as C5-A

Manufactured is Salem, OR, Sacramento, CA and Riverside, CA
16” panel coverage
24 Tru-Gauge™ steel & .032” aluminum are standard and attached with high-performance concealed clips (some profiles may be available with an integrated screw flange option– please inquire).
Screw flange is not available in heavier gauges:
- 22 Tru-Gauge™ steel and .040” aluminum
- Custom 20 & 18 Tru-Gauge™ steel and .050” & .063” aluminum
Aluminum recommended within 1000 ft of salt water (not required)
3’ to 32’9” panel lengths
(Inquire for longer or shorter lengths)
Custom profiles available
Vertical or horizontal wall application
Acceptable for use as a soffit panel
Interchangeable panel widths and configurations
Perforated options available (please inquire)

24 & 22 Tru-Gauge™ Kynar 500® (PVDF) Painted Steel G-90 Galvanized or AZ-50 ZINCALUME®
.032 Aluminum Kynar 500® (PVDF)
24 & 22 Tru-Gauge™ ZINCALUME® Plus
(No finish warranty – 25 yr. perforation warranty)
22 gauge Rusteel Plus™ (A606)
16 & 20 oz. Copper (Inquire for availability & price)
0.8mm and 1.0mm True Zinc on special request (please inquire)
Kynar 500® (PVDF) and substrate testing data available (See website)
PVDF is a fluoropolymer that is manufactured under the trademarked names Kynar 500® and Duranar®(PPG). Paint finishes containing a minimum 70% PVDF resin meet the high-performance weathering criteria established by the American Architectural Manufacturing Association and are allowed to carry the Kynar500® trademarked name. ZINCALUME® & ZINCALUME® Plus are registered trademarks of Bluescope Ltd. Galvalume® is a registered trademark of BIEC International, Inc. Vintage® is a registered trademark of Steelscape, Inc. Kynar® and Kynar 500® is a registered trademarks of Arkema, Inc.

Limited Lifetime residential paint warranty
40 year commercial paint warranty
21 Standard Colors, 5 Metallic Colors and 4 Specialized Materials
Kynar 500® (PVDF) Paint System – the ultimate in exterior durability and color retention
“Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® vcriteria
Superior quality, two coat, 70% resin finish, applied at a 1 mil. thickness
“Oil Canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection.
