HR-34™

Produced in Salem OR and Spokane WA

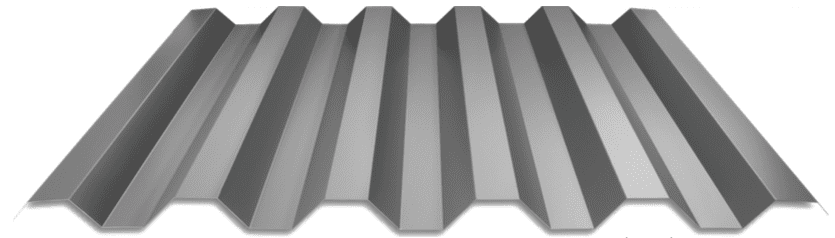

HR-34™ is an exposed fastener metal panel with full 34″ net coverage and is ideal for commercial, industrial, and architectural roof and wall applications.

ICC-ESR #5046 with CBC-CRC Supplement
ICC-ESR #5045 with CBC-CRC Supplement
UL Evaluation Report UL ER25913-01
California Department of Forestry & Fire Protection

Features & Benefits

  • Manufactured in Salem OR and Spokane WA
  • 26, 24 and 22 Tru-Gauge™ and .032” Aluminum
  • Custom 20 & 18 Tru-Gauge™(18GA brake-formed only) and .040”, .050” & .063” Aluminum (please inquire)
  • 1:12 minimum pitch recommended when installed with butyl sealant
  • Custom lengths 1’ to 45’ (For longer length panels, please inquire)
  • Long length flashings available up to 20’ 11” (For longer length flashing, please inquire)
  • Standard trim, custom trim and accessory packages available
  • Color matched neoprene washered screws
  • Roof and Vertical or Horizontal Wall application
  • Structural panel that will span up to 6’
  • OverEZee™ Retro-fit systems available

Material Specifications

  • 26 gauge ArmorTech™ Painted Steel
  • 24 & 22 Tru-Gauge™ Kynar 500® (PVDF) Painted Steel G-90 Galvanized or AZ-50 ZINCALUME®
  • .032” & .040” Kynar 500® (PVDF) Painted aluminum
  • 24 & 22 Tru-Gauge™ bare ZINCALUME® Plus AZ-55  (No finish warranty – 25 yr. perforation warranty)
  • 24 Tru-Gauge™ Bonderized
  • 22 Tru-Gauge™ Rusteel Plus™ (A606)
  • Custom 20 & 18 Tru-Gauge™ and .050” & .063” aluminum (please inquire)
  • 16 & 20 oz. Copper (Inquire for availability & price)
  • Kynar 500® (PVDF) and substrate testing data available (See website)
  • PVDF is a fluoropolymer that is manufactured under the trademarked names Kynar 500® and Duranar®(PPG). Paint finishes containing a minimum 70% PVDF resin meet the high-performance weathering criteria established by the American Architectural Manufacturing Association and are allowed to carry the Kynar500® trademarked name. ZINCALUME® & ZINCALUME® Plus are registered trademarks of Bluescope Ltd. Galvalume® is a registered trademark of BIEC International, Inc. Vintage® is a registered trademark of Steelscape, Inc. Kynar® and Kynar 500® is a registered trademarks of Arkema, Inc.

Testing

  • ICC-ESR #5045 & #5046 with CBC-CRC Supplement
  • Code compliance UL Evaluation Report
  • UL ER #25913-01. Construction No. 137, 244
  • UL 580 Class 90 – Wind Uplift
  • UL 790 Class A (ASTM E108) – Fire rated
  • UL 2218 Class 4 – Impact (hail) rated
  • ASTM E1680 – Air infiltration (roof)
  • ASTM E1646 – Water infiltration (roof)
  • ASTM E1592 – Negative structural uniform static air pressure
  • ASTM E330 – Positive structural uniform static air pressure
  • ASTM E331 – Water infiltration (wall)
  • ASTM E283 – Air infiltration (wall)
  • ASTM A653/A924 – G90 Galvanized
  • ASTM A792 – ZINCALUME®/Galvalume AZ-50/55
  • ASTM B209 – Aluminum Substrate

Finishes

  • Limited Lifetime residential paint warranty
  • 40 year commercial paint warranty
  • 21 Standard Colors, 5 Metallic Colors and 4 Specialized Materials
  • Kynar 500® (PVDF) Paint System – the ultimate in exterior durability and color retention
  • “Cool” color pigments are specially designed to reflect infrared light,  reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
  • Superior quality, two coat, 70% resin finish, applied at a 1 mil. thickness
  • “Oil Canning” is an inherent characteristics of roof and wall products, and not a defect, which is not  a cause for panel rejection.
