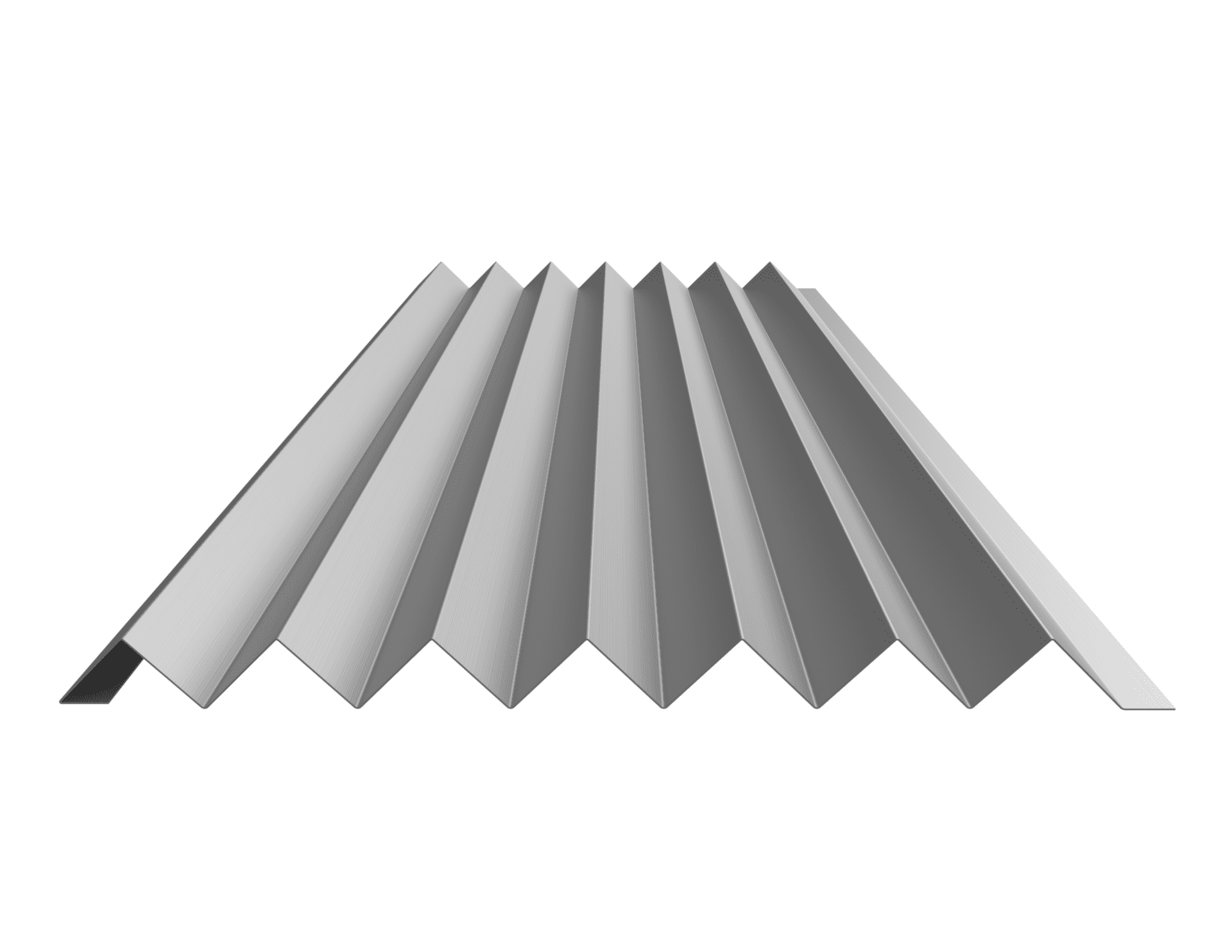

Zig Zag™

ICC-ESR #5045 with CBC-CRC Supplement

Features & Benefits

  • Manufactured in Salem, OR, Sacramento, CA and Riverside, CA
  • 14” coverage
  • 24 & 22 Tru-Gauge™ steel and .032” & .040” aluminum
  • Custom 20 & 18 Tru-Gauge™ steel and .050” & .063” aluminum
  • Aluminum recommended within 1000 ft of salt water (not required)
  • 3’ to 32’9” panel lengths
    (Inquire for longer or shorter lengths)
  • Vertical or horizontal wall application
  • Acceptable for use as a soffit panel
  • Perforated options available (please inquire)

Material Specifications

  • 22 & 24 Tru-Gauge™ Kynar 500® Painted Steel
  • .032″ Kynar 500® Painted Aluminum
  • 24 Tru-Gauge™ G-90 Galvanized or AZ-50
  • 22 & 24 Tru-Gauge™ bare Zincalume® Plus AZ-55
  • .040″ Kynar 500® Painted Aluminum (please inquire)
  • 24 Tru-Gauge™ Bonderized
  • 22 gauge Rusteel Plus™ (A606)
  • Custom 20 & 18 Tru-Gauge™ and .050″ and .063″ Aluminum (please inquire)
  • 16 OZ & 20 OZ Real Copper
  • Kynar 500® and substrate testing data available

Testing

  • ICC-ESR #5045 with CBC-CRC Supplement
  • ASTM A653/A924 – G-90 Galvanized
  • ASTM A792 – ZINCALUME®/Galvalume® AZ-50/55
  • ASTM B209 – Aluminum Substrate
  • ASTM E1592 – Negative structural uniform static air pressure

Finishes

  • 24 &    22 Tru-Gauge™ Kynar 500® (PVDF) Painted steel G-90 Galvanized or AZ-50 ZINCALUME®
  • .032” & .040” Kynar 500® (PVDF) Painted aluminum
  • 24 & 22 Tru-Gauge™ bare ZINCALUME® Plus AZ-55 (No finish warranty – 25 yr. perforation warranty)
  • 24 Tru-Gauge™ Bonderized
  • 22 gauge Rusteel Plus™ (A606)(No finish warranty – no perforation warranty)
  • 16 & 20 oz. Copper (Inquire for availability & price)
  • Kynar 500® and substrate testing data available (See website)
  • PVDF is a fluoropolymer that is manufactured under the trademarked names Kynar 500® and Duranar®(PPG). Paint finishes containing a minimum 70% PVDF resin meet the high-performance weathering criteria established by the American Architectural Manufacturing Association and are allowed to carry the Kynar500® trademarked name. ZINCALUME® & ZINCALUME® Plus are registered trademarks of Bluescope Ltd. Galvalume® is a registered trademark of BIEC International, Inc. Vintage® is a registered trademark of Steelscape, Inc. Kynar® and Kynar 500® is a registered trademarks of Arkema, Inc.
