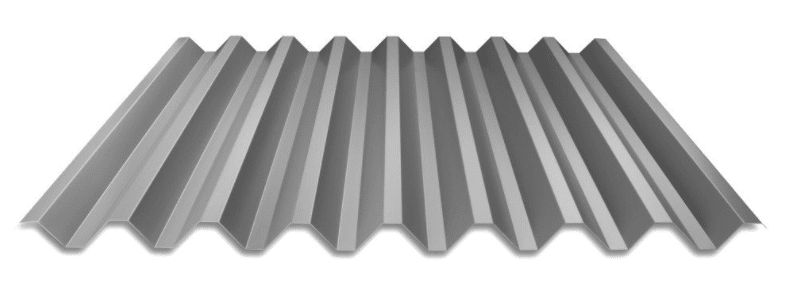

Classic V-Rib™

Produced in Salem OR, Sacramento CA and Riverside CA

Classic V-Rib™ panel is an economical, structural, through fastener metal roof and wall panel. Deep corrugations allow for aesthetically pleasing shadow lines, making it an excellent choice for siding or roofing applications.

Features & Benefits

  • Manufactured in Salem OR, Riverside CA and Sacramento, CA
  • 24 and 22 Tru-Gauge™ and .032” Aluminum
  • Custom 20 & 18 Tru-Gauge™ and .040” Aluminum (please inquire)
  • 1:12 minimum pitch recommended when installed with butyl sealant
  • Custom lengths 3’ to 20’ 10” (For longer length panels, please inquire)
  • Long length flashings available up to 20’ 11”
  • Aluminum recommended within 1000 ft of salt water (not required)
  • Color matched neoprene washered screws
  • Roof and Vertical or Horizontal Wall application
  • Perforated options available (please inquire)
  • Structural panel that will span up to 6’
  • OverEZee™ Retro-fit systems available

Material Specifications

  • 24 & 22 Tru-Gauge™ Kynar 500® (PVDF) Painted Steel G-90 Galvanized or AZ-50 ZINCALUME®
  • .032” & .040” Kynar 500® (PVDF) Painted aluminum
  • 24 & 22 Tru-Gauge™ bare ZINCALUME® Plus AZ-55  (No finish warranty – 25 yr. perforation warranty)
  • 24 Tru-Gauge™ Bonderized
  • 22 Tru-Gauge™ Rusteel Plus™ (A606)
  • Custom 20 & 18 Tru-Gauge™ and .050” & .063” aluminum (please inquire)
  • 16 & 20 oz. Copper (Inquire for availability & price)
  • Kynar 500® (PVDF) and substrate testing data available (See website)
  • PVDF is a fluoropolymer that is manufactured under the trademarked names Kynar 500® and Duranar®(PPG). Paint finishes containing a minimum 70% PVDF resin meet the high-performance weathering criteria established by the American Architectural Manufacturing Association and are allowed to carry the Kynar500® trademarked name. ZINCALUME® & ZINCALUME® Plus are registered trademarks of Bluescope Ltd. Galvalume® is a registered trademark of BIEC International, Inc. Vintage® is a registered trademark of Steelscape, Inc. Kynar® and Kynar 500® is a registered trademarks of Arkema, Inc

Testing

  • ASTM E 1680 – Air infiltration (roof)
  • ASTM E1646 – Water infiltration (roof)
  • ASTM E331 – Water infiltration (wall)
  • ASTM E283 – Air infiltration (wall)
  • ASTM A653/A924 – G90 Galvanized
  • ASTM A792 – ZINCALUME®/Galvalume AZ-50/55

Finishes

  • Limited Lifetime residential paint warranty
  • 40 year commercial paint warranty
  • 21 Standard Colors, 5 Metallic Colors and 4 Specialized Materials
  • Kynar 500® (PVDF) Paint System – the ultimate in exterior durability and color retention
  • “Cool” color pigments are specially designed to reflect infrared light,  reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
  • Superior quality, two coat, 70% resin finish, applied at a 1 mil. thickness
  • “Oil Canning” is an inherent characteristics of roof and wall products, and not a defect, which is not  a cause for panel rejection.
