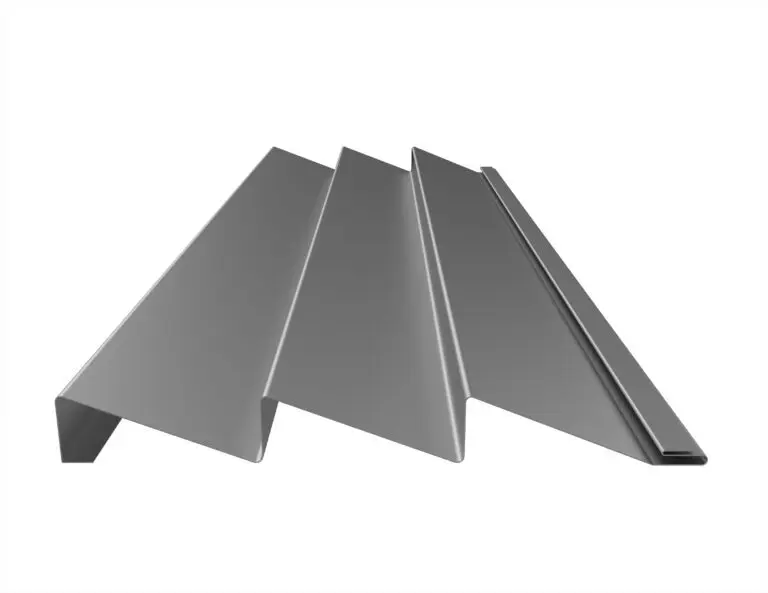

Impact Series

Inception Series gives you the custom look you want within your budget. Contact us so we can help fulfill your vision of the perfect look.

ICC-ESR #5045 with CBC-CRC Supplement

Features & Benefits

  • 12″ panel coverage
  • 24 and 22 Tru-Gauge™ and .032” and .040 Aluminum. Screw Flange and Clip attachment available
  • Custom 20 & 18 Tru-Gauge™ and .050” and .063” Aluminum. These require the use of high performance clip. (please inquire)
  • 2′ to 20’10” panel lengths
  • Standard trim, custom trim and accessory packages available
  • Color matched neoprene washered screws
  • Roof and vertical or horizontal wall application
  • Manufactured in Salem OR, Riverside CA, and Sacramento CA

Testing

  • ICC-ESR #5045 with CBC-CRC Supplement (coming 2023)
  • ASTM E331 – Water infiltration (wall)
  • ASTM E283 – Air infiltration (wall)
  • ASTM E1592 – Negative structural uniform static air pressure
  • ASTM E1680 – Air infiltration (roof)
  • ASTM E1646 – Water infiltration (roof)

StandOff Clip



Standoff clips are used when ventilation between the panel and substrate is desired.

Standard Clip



Standard clips are used when flush mounting the panel to the substrate.

Material Specifications

  • 22 & 24 Tru-Gauge™ Kynar 500® Painted Steel
  • .032″ Kynar 500® Painted Aluminum
  • 24 Tru-Gauge™ G-90 Galvanized or AZ-50
  • 22 & 24 Tru-Gauge™ bare Zincalume® Plus AZ-55
  • .040″ Kynar 500® Painted Aluminum (please inquire)
  • 24 Tru-Gauge™ Bonderized
  • 22 gauge Rusteel Plus™ (A606)
  • Custom 20 & 18 Tru-Gauge™ and .050″ and .063″ Aluminum (please inquire)
  • 16 OZ & 20 OZ Real Copper
  • Kynar 500® and substrate testing data available

Finishes

  • 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
  • Vintage® has a color range that can vary from batch-to-batch and have directional variations
  • Kynar 500® Paint System-the ultimate in exterior durability and color retention
  • “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
  • Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
  • 40-year residential paint warranty
  • 20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
  • “Oil Canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection
