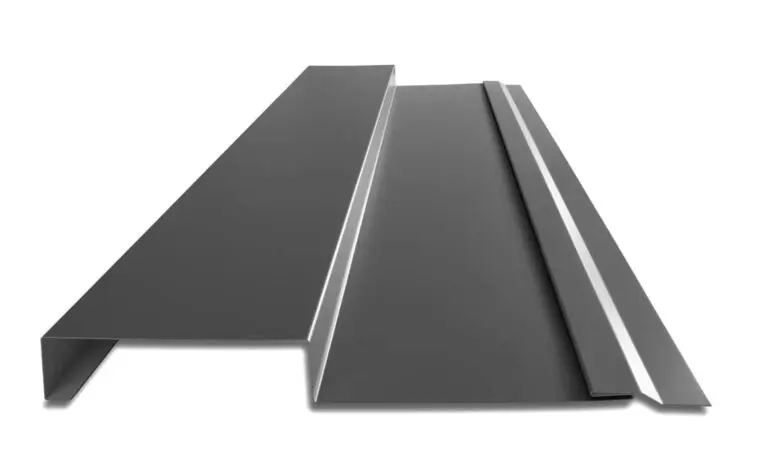

Contour Reveal™
Contour Reveal™ Panels give you various design options for siding and soffit applications. Whether you are looking for clean consistent lines or want to mix and match different profiles, either option will give your building a lifetime of elegance.
ICC-ESR #5045 with CBC-CRC Supplement
Features & Benefits
- Contour Reveal™: 12″ panel coverage
- Horizontal or vertical application (Rain Screen)
- Concealed fastener attachment
- Machine folded panels, helps to decrease “oil canning” in comparison to roll-formed panels
- 2′ to 20’10” panel lengths
- Contour Reveal™: 1″ or 1/12″ deep panel
- Contour Reveal™ panels are interchangeable
- Clip systems available – flush mount and high performance standoff clip (required for 18-20 gauge)
- Tested for: ASTM E283, E330 and E331
- Custom profiles you design
StandOff Clip
Standoff clips are used when ventilation between the panel and substrate is desired.
Standard Clip
Standard clips are used when flush mounting the panel to the substrate.
Material Specifications
- 24 gauge Kynar 500® Painted Steel .0236″ (thickness prior to painting) Galvanized G-90 or Zincalume® AZ-50 Per ASTM A-792
- 22 & 24 gauge Zincalume® Plus AZ-55 Per ASTM A-792 (no finish warranty – 25 year perforation warranty)
- 22 gauge Kynar 500® Painted Steel .029″ (thickness prior to painting) Galvanized G-90 or Zincalume® AZ-50 Per ASTM A-792: Select colors, please inquire for details
- .032″ Kynar 500® Painted Aluminum: Select colors, please inquire for details
- 16 and 20 ounce Copper
Finishes
- 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
- Vintage® has a color range that can vary from batch-to-batch and have directional variations
- For more information: click here
- Kynar 500® Paint System-the ultimate in exterior durability and color retention
- “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
- Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
- 40-year residential paint warranty
- 20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
