Easy-Lock™ panel is featured on the roof & siding of this residence:

Roof & Wall: Easy-Lock™ | 26 ga | Weathered Zinc

Other Easy-Lock™ Projects: Hanson Home, Riley Residence, Cascadia Townhomes, Markum Inn Restaurant

NEW Notched and Tabbed panels available starting

July 24th

The Easy-Lock™ Standing Seam is the metal roofing panel with a patented no-siphon dry lock seam, with a unique reversing feature to allow installation of panels from both directions – starting at any location. The panel is designed with softer, less industrial lines to provide a more architecturally pleasing appearance.

Code Compliance UL Evaluation Report UL ER25913-01  |  UL Online Certification Directory

Features & Benefits

  • 12″ and 16″ coverage options
  • 26, 24 & 22 Tru-Gauge™ and .032 ” Aluminum
  • 16 & 20 oz. Copper (please inquire)
  • Factory-notched and tabbed panels available
  • Vertical interlocking application: allows installation from both directions starting at any location
  • Patented no-siphon lock seam
  • 1″ vertical rib with ⅜” flat top for ease of flashing attachment
  • Concealed fasteners: fasteners cannot leak
  • Pre-slotted fastener flange: allows expansion and contraction of panel (high wind clips available for panel lengths over 35′)
  • 3:12 minimum pitch recommended (for lower pitches, please inquire)
  • Standard panel lengths 4′ to 35′ – not notched
    Standard panel lengths 1′ to 35′ – notched
    (for longer panels, please inquire)

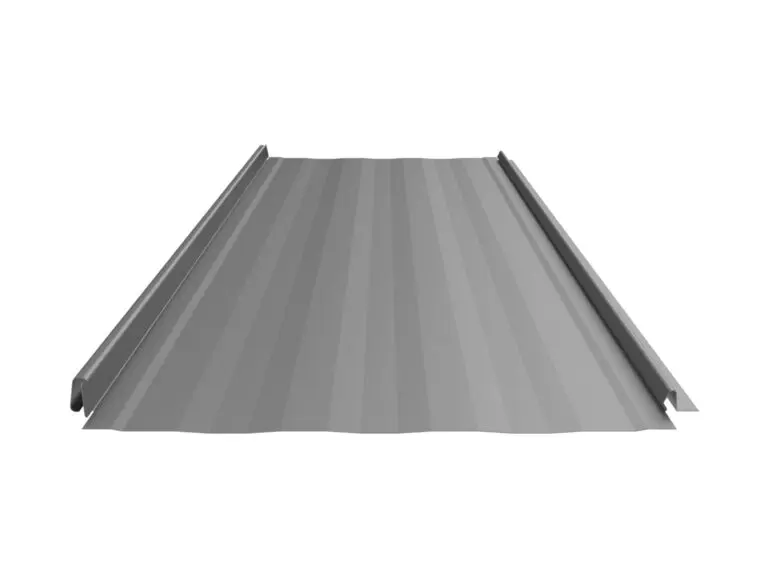

  • Panel options: Striations, Accent Ribs, Flat Pan


Material Specifications

  • 26 gauge Kynar 500® Painted Steel .019″ (thickness prior to painting) G-90 Galvanized or Zincalume® AZ-50
  • 24 gauge Kynar 500® Painted Steel .0236″ (thickness prior to painting) G-90 Galvanized or Zincalume® AZ-50
  • 24 & 22 gauge Zincalume® Plus AZ-55 (no finish warranty  – 25 year perforation warranty)
  • 22 gauge Kynar 500® Painted Steel .029″ (thickness prior to painting) G-90 Galvanized or Zincalume® AZ-50
  • .032″ Kynar 500® Painted Aluminum
  • 22 gauge Rusteel Plus™ (A606)
  • 16 and 20 ounce Copper (please inquire)
  • Kynar 500® and substrate testing data available (see website)


  • 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
  • Vintage® has a color range that can vary from batch-to-batch and have directional variations
  • Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
  • Kynar 500® Paint System – the ultimate in exterior durability and color retention
  • “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
  • Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
  • 40-year residential paint warranty
  • 20 and 30 year commercial paint warranty: Contact your sales rep. for warranty specifications
