Classic V-Rib™

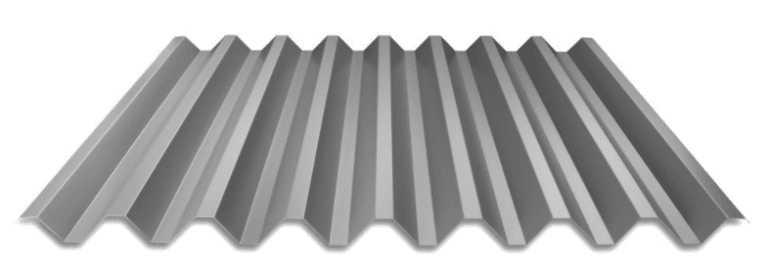

Classic V-Rib™ panel is an economical, structural, through fastener metal roof and wall panel. Deep corrugations allow for aesthetically pleasing shadow lines, making it an excellent choice for siding or roofing applications.

Features & Benefits

  • Exposed fastener attachment
  • Structural panel that will span up to 5′
  • 36″ coverage for quick installation
  • Horizontal or vertical wall application
  • Can be fabricated with finish paint on either side
  • Short-cut capability down to 3′
  • Maximum panel length 21′
  • Long length flashing available up to 20’11”
  • Air/Water: ASTM E1680, E1646, E283, E331
    Substrate: ASTM A653/A792

Material Specifications

  • 24 gauge Kynar 500® Painted Steel .0236˝ (thickness prior to painting) G-90 Galvanized or Zincalume® AZ-50 Per ASTM A-792
  • 22 & 24 gauge Zincalume® Plus AZ-55 Per ASTM A-792 (no finish warranty  – 25 year perforation warranty)
  • 22 gauge Kynar 500® Painted Steel .029˝ (thickness prior to painting) G-90 Galvanized or Zincalume® AZ-50 Per ASTM A-792: Select colors, see spec sheet for details

Finishes

  • 21 Standard Kynar 500® Colors, 2 Metallic Colors and 3 Specialized Colors
  • Vintage® has a color range that can vary from batch-to-batch and have directional variations
  • Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
  • Kynar 500® Paint System – the ultimate in exterior durability and color retention
  • “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
  • Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
  • 40-year residential paint warranty
  • 20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
