Classic 7/8″ Corrugated™ (produced in Riverside)

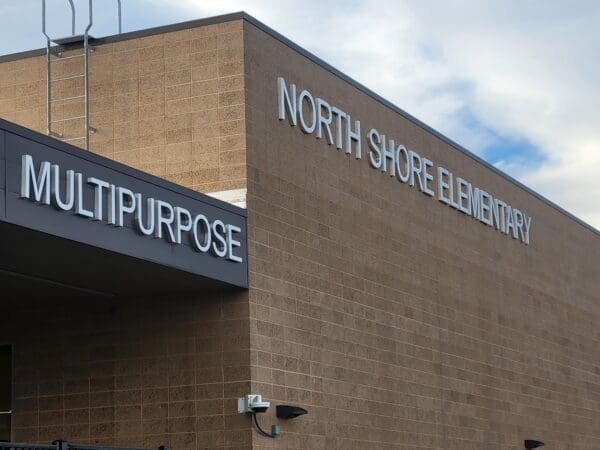

Classic 7/8″ Corrugated™ Panel is featured on the roof of this project:

Roof: Classic 7/8″ Corrugated | 24 ga | Bonderized

Other Class 7/8″ Corrugated Projects: Trevisol Home

Classic 7/8″ Corrugated™ Panel is an economical, structural, exposed fastener metal roof and wall panel. Deep corrugations allow for aesthetically pleasing shadow lines, making it an excellent choice for siding or roofing applications.

ICC-ESR #5045 and #5046 with CBC-CRC Supplement

Code Compliance UL Evaluation Report UL ER25913-01

Features & Benefits

  • 24 and 22 Tru-Gauge™ and .032″ and .040″ Aluminum
  • 1:12 minimum pitch recommended when installed with butyl sealant
  • Custom lengths 1′ to 45′ (For longer length panels, please inquire)
  • Long length flashings available up to 20’11”
  • Standard trim, custom trim and accessory packages available
  • Color matched neoprene washered screws
  • Roof and Vertical or Horizontal Wall application
  • Fiberglass panels available to match profile
  • Manufactured in Riverside CA
  • OverEZee™ Retro-fit systems available

Testing

  • ICC-ESR #5045 & #5046 with CBC-CRC Supplement
  • Code compliance UL Evaluation Report
    UL ER #25913-01. Construction No. 649
  • UL 580 Class 90 – Wind Uplift rated
  • UL 790 Class A (ASTM E108) – Fire rated
  • UL 2218 Class 4 – Impact (hail) rated
  • ASTM E1680 – Air infiltration (roof)
  • ASTM E1592 – Water infiltration (roof)
  • ASTM E1592 – Negative structural uniform static air pressure
  • ASTM E330 – Positive structural uniform static air pressure
  • ASTM E331 – Water infiltration (wall)
  • ASTM E283 – Air infiltration (wall)
  • ASTM A653/A924 – G90 Galvanized
  • ASTM A792 – Zincalume/Galvalume AZ-50/55
  • ASTM B209 – Aluminum Substrate

Material Specifications

  • 24 and 22 Tru-Gauge™ Kynar 500® Painted Steel
  • .032″ Kynar 500® Painted Aluminum
  • 24 Tru-Gauge™ G-90 Galvanized or AZ-50
  • 24 & 22 Tru-Gauge™ bare Zincalume® Plus AZ-55 (no finish warranty  – 25 year perforation warranty)
  • G-90 Galvanized or Zincalume® AZ-50
  • .040″ Kynar 500® Painted Aluminum (please inquire)
  • 24 Tru-Gauge™ Bonderized
  • 22 gauge Rusteel Plus™ (A606) – Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
  • Kynar 500® and substrate testing data available

Finishes

  • 21 Standard Kynar 500® Colors, 5 Metallic Colors and 3 Specialized Colors
  • Vintage® has a color range that can vary from batch-to-batch and have directional variations
  • Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
  • 16 ArmorTech™ colors, Zincalume® Plus and Galvanized
  • “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
  • 40-year residential paint warranty
  • 20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
