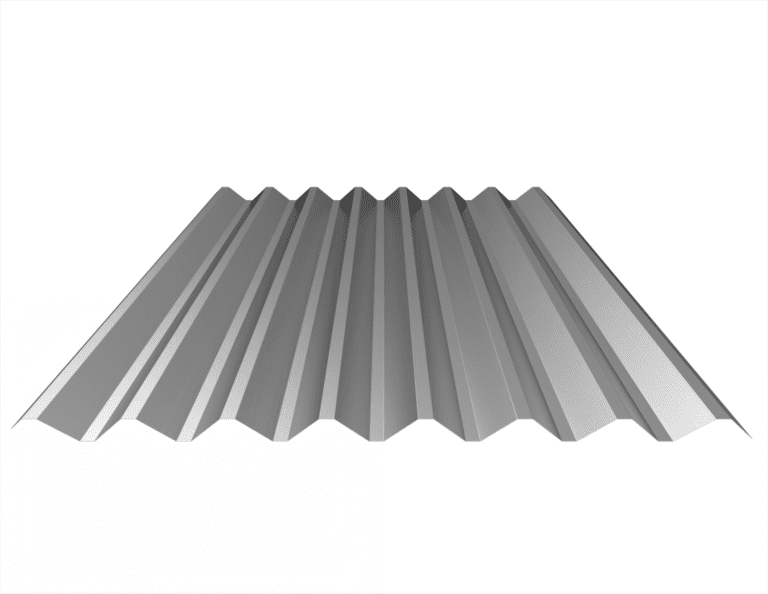

Ribbed Series
Our exposed fastener metal panels offer an ideal roof and/or wall application for commercial, industrial, and architectural buildings.
ICC-ESR #5045 with CBC-CRC Supplement*
Features & Benefits
- 24 & 22 Tru-Gauge™ and .032″ Aluminum
- Custom 20 & 18 Tru-Gauge™ and .040″ Aluminum (please inquire)
- 1:12 minimum pitch if seam height < 1″ recommended when installed with butyl sealant
- 3:12 minimum pitch if seam height is ≥ 1″ recommended when installed with butyl sealant
- Custom lengths 2′ to 20′ 10″
- Standard trim, custom trim and accessory packages available
- Color matched neoprene washered screws
- Roof and vertical or horizontal wall application
- Manufactured in Salem OR, Riverside CA, and Sacramento CA
- OverEZee™ Retro-fit systems available
Testing
ICC-ESR #5045 with CBC-CRC Supplement*- ASTM E1680 – Air infiltration (roof)
- ASTM E1646 – Water infiltration (roof)
- ASTM E1592 – Structural uniform static air pressure*
- ASTM E331 – Water infiltration (wall)
- ASTM E283 – Air infiltration (wall)
- ASTM A653/A924 – G90 Galvanized
- ASTM A792 – Zincalume/Galvalume AZ-50/55
- ASTM B209 – Aluminum Substrate
Material Specifications
- 24 & 22 Tru-Gauge™ Kynar 500® Painted Steel
- .032″ Kynar 500® Painted Aluminum
- 24 Tru-Gauge™ G-90 Galvanized or AZ-50
- 24 & 22 Tru-Gauge™ bare Zincalume® Plus AZ-55 Per ASTM A-792 (no finish warranty – 25 year perforation warranty)
- .040″ Kynar 500® Painted Aluminum (inquire)
- 24 Tru-Gauge™ Bonderized
- 22 gauge Rusteel Plus™ (A606)
- Custom 20 & 18 Tru-Gauge™ and .050″ and .063″ Aluminum (please inquire)
- 16 OZ & 20 OZ Real Copper
- Kynar 500® and substrate testing data available
Finishes
- 21 Standard Kynar® Colors, 5 Metallic Colors and 3 Specialized Colors
- Vintage® has a color range that can vary from batch-to-batch and have directional variations
- For more information: click here
- Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
- For more information: click here
- Kynar 500® Paint System – the ultimate in exterior durability and color retention
- “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
- Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
- 20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
- 21 Standared ArmorTech™ Colors, Zincalume® Plus and Galvanized
- ArmorTech™ Paint System – excellent exterior durability
- 40-year residential paint warranty
