ShadowLine™

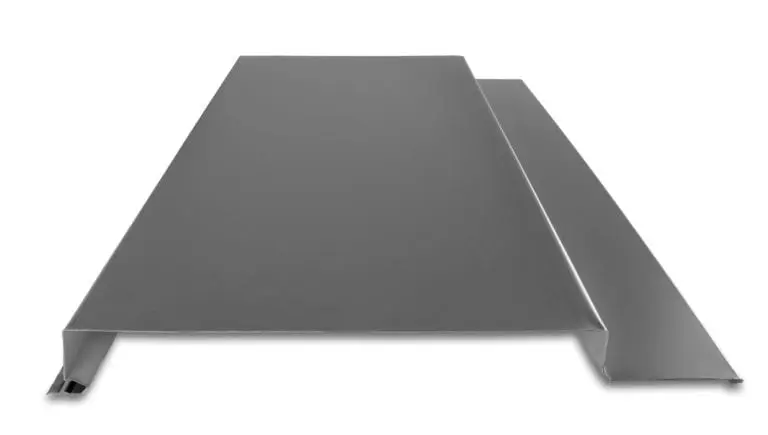

ShadowLine™ will give your commercial or residential project a unique appearance. The panel reveal displays a shadowing effect that changes throughout the day, giving depth to your building.

Features & Benefits

  • 11″ to 15″ coverage panels
  • 24 & 22 Tru-Gauge™
  • .032″ & .040″ Aluminum
  • 1/2″ to 3″ reveals in 1/2″ increments
  • Custom Lengths 3′ to 35′
    (inquire for longer or shorter lengths)
  • 2′ Shortcut capability (fee applicable)
  • Concealed fasteners: fasteners cannot leak
  • Versatile in wall and soffit applications
  • Panel options: Striations, Single V-Groove, Double V-Grooves, and Flat Pan
  • ShadowLine™ can perforated for soffit applications

Testing

  • ICC-ESR #5045 with CBC-CRC Supplement
  • ASTM E1592 – Structural uniform static air pressure
  • ASTM E1680 – Air infiltration (roof)
  • ASTM E283 – Air infiltration (wall)
  • ASTM E1646 – Water infiltration (roof)
  • ASTM E331 – Water infiltration (wall)

Material Specifications

  • 24 & 22 gauge Kynar 500® Painted Steel
  • .032″ Kynar 500® Painted Aluminum
  • 24 Tru-Gauge™ G-90 Galvanized or AZ-50
  • 24 & 22 gauge Zincalume® Plus AZ-55 (no finish warranty  – 25 year perforation warranty)
  • .040″ Kynar 500® Painted Aluminum (please inquire)
  • 24 Tru-Gauge™ Bonderized
  • 22 gauge Rusteel Plus™ (A606)
  • 16 OZ & 20 OZ Real Copper

Finishes

  • 21 Standard Kynar 500® Colors, 5 Metallic Colors and 4 Specialized Colors
  • Vintage® has a color range that can vary from batch-to-batch and have directional variations
  • Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
  • “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
  • 40-year residential paint warranty
  • 20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
