Versa-Span™ (produced in Salem)

Versa-Span™ is featured on the siding of this commercial building:

Siding: Versa-Span™ | 24 ga | Weathered Zinc

Versa-Span™ system is a strong, durable, versatile, long length roof panel. It combines the strength of steel fluted pans and a lock-action rib design. Which together with concealed fasteners, enables installation on low pitched roofs.

ICC-ESR #5046 with CBC-CRC Supplement

Code Compliance UL Evaluation Report UL ER25913-01UL Online Certification Directory

Features & Benefits

  • 12″, 14″, 16″ & 18″ coverage options available
  • 24 and 22 gauge Tru-Gauge™ and .032″ and .040″ Aluminum
  • Floating clip system: allows for expansion & contraction of panels in longer lengths
  • 1-3/4″ vertical rib, factory notching available
  • 2:12 minimum pitch recommended (for lower pitches, please inquire)
  • Standard panel lengths 5′ to 60′ – not notched
    Standard panel lengths 1′ to 60′ – notched
    (for longer length panels, please inquire)
  • Onsite roll forming available for longer panels
  • Factory injected Butyl sealant available
  • Clip Relief is not standard, available upon request

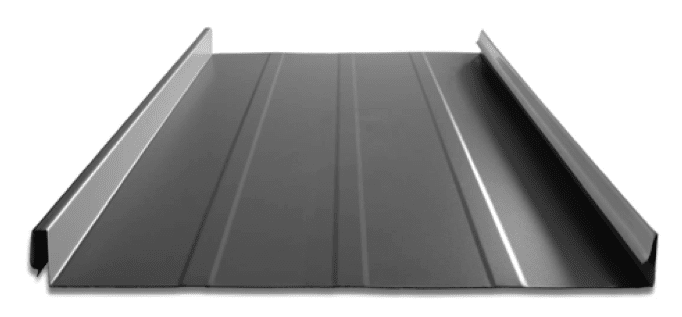

  • Pan options: Striations, Accent Ribs, Flat pan
  • Wide Batten incorporates nicely over Versa-Span™ standing seam panel (separate clip required)
  • Weather tightness warranty available (Contact Taylor Metal representative for details)
  • Manufactured in Salem, OR

Testing

  • ICC-ESR #5046 with CBC-CRC Supplement
  • Code compliance UL Evaluation Report UL ER #25913-01
  • UL Construction No. 254, 255, 261, 303, 342, 343, 414, 436, 445, 447, 448, 486, 508, 508A, 543, 544
  • UL 580 Class 90 Wind Uplift
  • UL 790 Class A (ASMT E108) – Fire rated
  • UL 2218 Class 4 – Impact (hail) rated
  • ASTM E1680 – Air infiltration (roof)
  • ASTM E1646 – Water infiltration (roof)
  • ASTM E1592 – Structural uniform static air pressure
  • ASTM E1514 – Standard for Structural Standing steel roof panels systems
  • ASTM E331 – Water infiltration (wall)
  • ASTM E283 – Air infiltration (wall)
  • ASTM A653/A924 – G90 Galvanized
  • ASTM A792 – Zincalume/Galvalume AZ-50/55
  • ASTM B209 – Aluminum Substrate

Material Specifications

  • 24 Tru-Gauge™ Kynar 500® Painted Steel
  • 22 Tru-Gauge™ Kynar 500® Painted Steel
  • .032″ Kynar 500® Painted Aluminum
  • 24 Tru-Gauge™ G-90 Galvanized or AZ-50
  • 24 and 22 Tru-Gauge™ bare Zincalume® Plus, AZ-55 (no finish warranty  – 25 year perforation warranty)
  • G-90 Galvanized or AZ-50
  • .040″ Kynar 500® Painted Aluminum (please inquire)
  • 24 Tru-Gauge™ Bonderized
  • 22 gauge Rusteel Plus™ (A606) – Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
  • Custom 20 & 18 Tru-Gauge™ and .050″ and .063″ Aluminum (please inquire)
  • 16 and 20 ounce Real Copper

Finishes

  • 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
  • Vintage® has a color range that can vary from batch-to-batch and have directional variations
  • Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
  • Kynar 500® Paint System – the ultimate in exterior durability and color retention
  • “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
  • Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
  • 40-year residential paint warranty
  • 20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
