Northern Rib™

Produced in Auburn

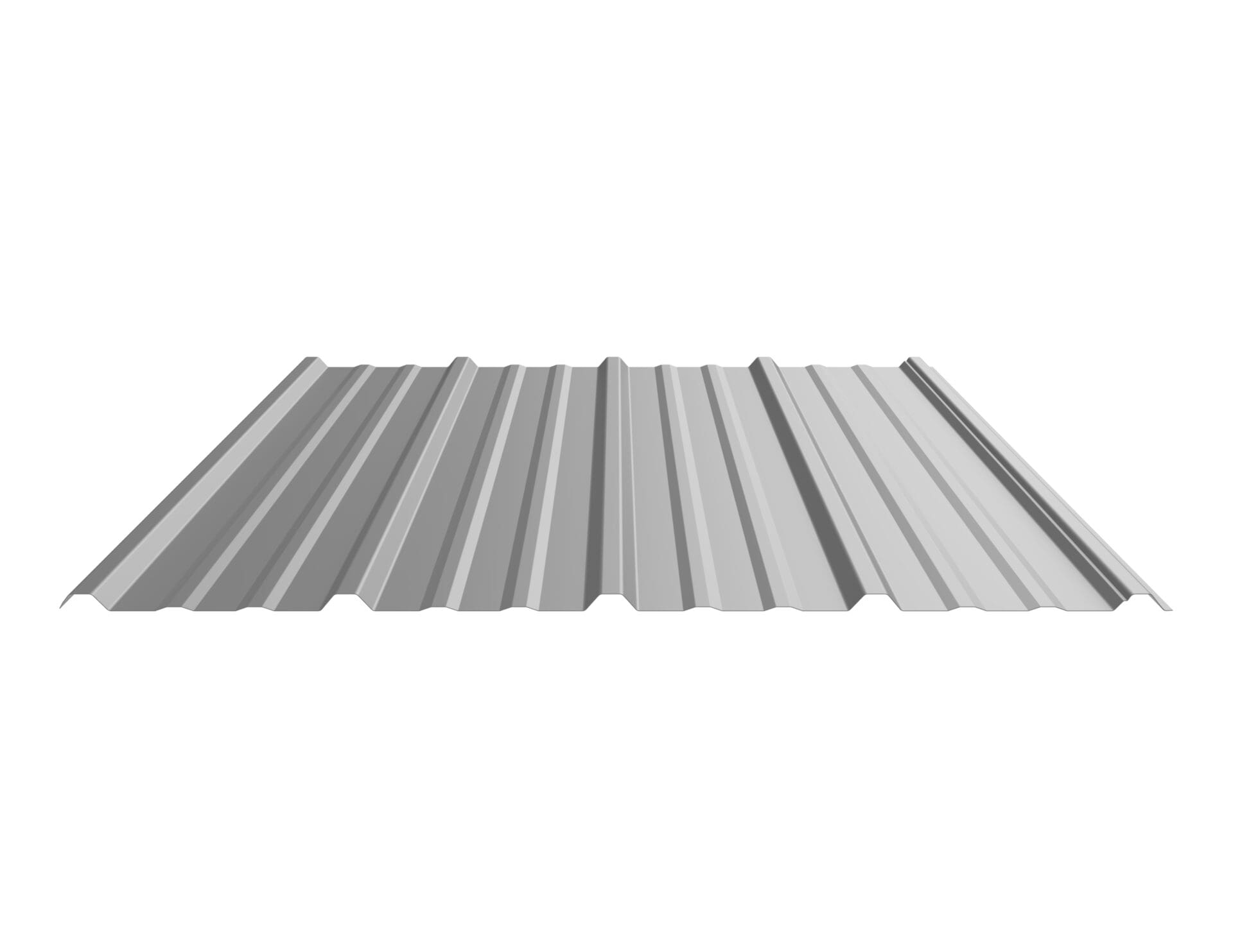

Northern Rib™ Panel is a light gauge exposed fastener panel with 5/8″ high ribs, 9″ on center, with a 36″ net coverage. This is the roof and wall panel of choice for the Pacific Northwest Region.

(Coming Soon)

Features & Benefits

Manufactured in Auburn WA
36″ panel coverage
5/8″ rib height
29 Tru-Gauge™ steel
3:12 minimum pitch recommended when installed with butyl sealant
1′ to 45′ panel lengths (inquire for longer length panels)
20’11” long length flashings (inquire for longer length flashings)
OverEZee™ Retro-fit systems available
Polycarbonate panels available to match profile
Roof & vertical or horizontal wall application
Standard trim, custom trim and accessory packages available
Color matched neoprene washered screws

Material Specifications

26 Tru-Gauge™ ArmorTech™ Painted Steel
24 & 22 Tru-Gauge™ Kynar 500® Painted Steel
.032″ Kynar 500® Painted Aluminum
24 Tru-Gauge™ G-90 Galvanized or AZ-50
24 & 22 Tru-Gauge™ bare ZINCALUME® Plus AZ-55 (no finish warranty — 25 yr. perforation warranty)
G-90 Galvanized or AZ-50
.040″ Kynar 500® Painted Aluminum (please inquire)
24 Tru-Gauge™ Bonderized

Testing

UL 790 Class A (ASTM E108) – Fire rated (Coming soon)
UL 2218 Class 4 – Impact (hail) rated (Coming soon)
ASTM A653/A924 – G90 Galvanized
ASTM A792 – ZINCALUME®/Galvalume® AZ-50/55
ASTM – Anti-Graffiti (Kynar only)
ASTM E283 – Air infiltration (wall)
ASTM E331 – Water infiltration (wall)
ASTM E455-19 – Shear and Diaphragm (For engineering data, please inquire)
ASTM E1646 – Water infiltration (roof)
ASTM E1680 – Air infiltration (roof)

Finishes

23 Standard ArmorTech™ colors
ArmorTech™ Paint System – excellent exterior durability
21 Standard Kynar 500® Colors, 5 metallics, and 3 specialized colors
Vintage® has a color range that can vary from batch-to-batch and have directional variations
- For more information: click here
Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
- For more information: click here
Kynar 500® Paint System – the ultimate in exterior durability
“Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
40-year commercial paint warranty’s: Contact TMP for warranty specifications
Superior quality, two coat SMP resin system at 1 mil. thickness
Limited lifetime residential paint warranty
- fading
- chalking
- chipping
- cracking
- peeling
