StreamLine™

StreamLine™ Standing Seam is the metal roofing panel with a patented no-siphon dry lock seam, with a unique reversing feature to allow installation of panels from both directions – starting at any location. The panel is designed with softer, less industrial lines to provide a more architecturally pleasing appearance.

NEW! Code Compliance UL Evaluation Report UL ER25913-01  |  UL Online Certification Directory

Features & Benefits

  • 16″ coverage
  • 26 gauge Tru-Gauge™ ArmorTech™ Painted Steel
  • Factory-notched and tabbed panels available
  • Vertical interlocking application: allows installation from both directions starting at any location
  • Patented no-siphon lock seam
  • 1″ vertical rib with ⅜” flat top for ease of flashing attachment
  • Concealed fasteners: fasteners cannot leak
  • Pre-slotted fastener flange: allows expansion/contraction of panel(high wind clips available for panel length over 35′)
  • 3:12 minimum pitch recommended
    (for lower pitches please inquire)
  • Standard panel lengths 4′ to 35′ – not notched
    Standard panel lengths 1′ to 35′ – notched and tabbed
    (for longer lengths, please inquire)

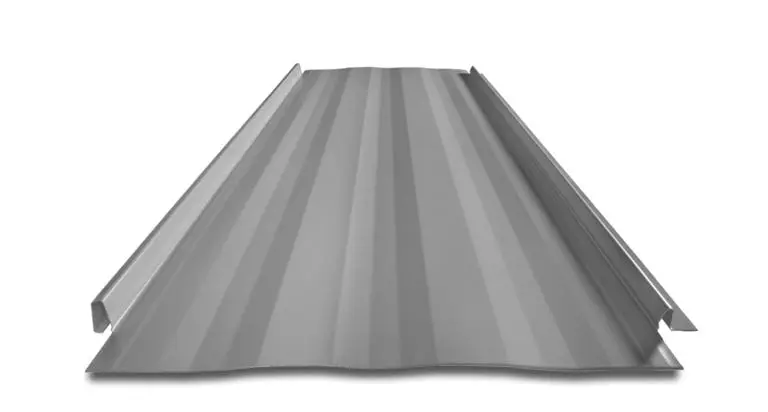

  • Panel options: Striations and Accent Ribs

Testing

  • Code compliance UL Evaluation Report – UL ER #25913-01
  • UL Construction No. 529
  • UL 580 Class 90 – Wind Uplift
  • UL 790 Class A (ASTM E108) – Fire rated
  • UL 2218 Class 4 Impact (hail) rated  (StreamLine™ carries its UL Classifications under the Easy-Lock™ profile designation)
  • ASTM A653/A924 – G90 Galvanized
  • ASTM A792 – Zincalume/Galvalume AZ-50/55
  • ASTM B209 – Aluminum Substrate

Material Specifications

  • 26 gauge ArmorTech™ SMP Painted Steel G-90 Galvanized or Zincalume® AZ-50
  • 26 gauge bare Zincalume® Plus AZ-55 (No finish warranty  – 25 year perforation warranty)
  • 26 gauge bare G-90 Galvanized (No finish warranty – no perforation warranty)

Finishes

  • 18 Standard Colors, Zincalume® Plus, and G-90 Galvanized
  • ArmorTech™ Paint System – excellent in exterior durability and color retention
  • “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
  • Superior quality, two coat SMP resin system at 1 mil. thickness
  • 40-year residential paint warranty
    • fading
    • chalking
    • chipping
    • cracking
    • peeling
