Easy-Lock™

Roof: Easy-Lock™ | 24 GA | Matte Black (Kynar 500®) | Profile: Striations with notching & tabbing

The Easy-Lock™ Standing Seam is the metal roofing panel with a patented no-siphon dry lock seam, with a unique reversing feature to allow installation of panels from both directions – starting at any location. The panel is designed with softer, less industrial lines to provide a more architecturally pleasing appearance.

Code Compliance UL Evaluation Report UL ER25913-01
Residential Limited Lifetime Warranty

Easy-Lock™ Panel Is Featured on the Roof of This Building

Features & Benefits

  • Manufactured in Salem, OR, Auburn, WA, Sacramento, CA and Riverside, CA
  • 12″ & 16″ Coverage Options
  • 1″ rib height with ⅜” flat top for ease of flashing attachment
  • 26, 24 & 22 Tru-Gauge™ and .032 ” Aluminum
  • Aluminum is recommended within 1000 ft of salt water (not required)
  • 16 & 20 oz. Copper (Inquire for availability & price)
  • 3′ to 35′ panel lengths (Inquire for longer or shorter lengths)
  • Panel options: Striations, Accent Ribs, Flat Pan
  • 3:12 minimum pitch recommended (Inquire for lower pitches)
  • Factory-notched and tabbed panels available
  • Vertical interlocking application: allows installation from both directions starting at any location
  • Patented no-siphon lock seam
  • Concealed fasteners: fasteners cannot leak
  • Pre-slotted fastener flange: allows expansion and contraction of panel (high wind clips available for panel lengths over 35′)

Material Specifications

  • 26, 24 & 22 gauge Kynar 500® (PVDF) Painted Steel G-90 Galvanized or ZINCALUME® AZ-50
  • .032″ Kynar 500® (PVDF) Painted Aluminum
  • 24 & 22 gauge ZINCALUME® Plus AZ-55 (no finish warranty  – 25 year perforation warranty)
  • 22 gauge Rusteel Plus™ (A606)
  • 16 & 20 oz. Copper (Inquire for availability & price)
  • Kynar 500® (PVDF) and substrate testing data available (see website)
  • PVDF is a fluoropolymer that is manufactured under the trademarked names Kynar 500® and Duranar®(PPG). Paint finishes containing a minimum 70% PVDF resin meet the high-performance weathering criteria established by the American Architectural Manufacturing Association and are allowed to carry the Kynar500® trademarked name. Zincalume & Zincalume® Plus are registered trademarks of Bluescope Ltd. Galvalume® is a registered trademark of BIEC International, Inc.

Testing

Finishes

  • Limited Lifetime residential paint warranty
  • 40 year commercial paint warranty

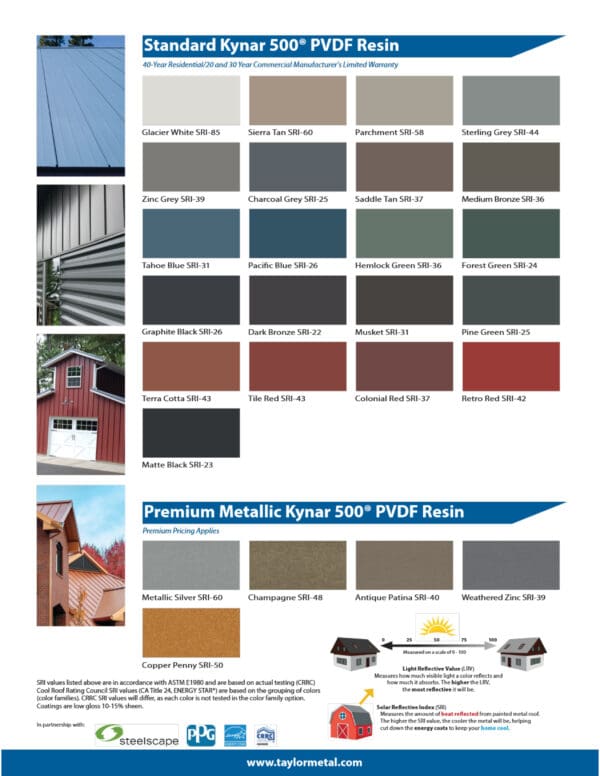

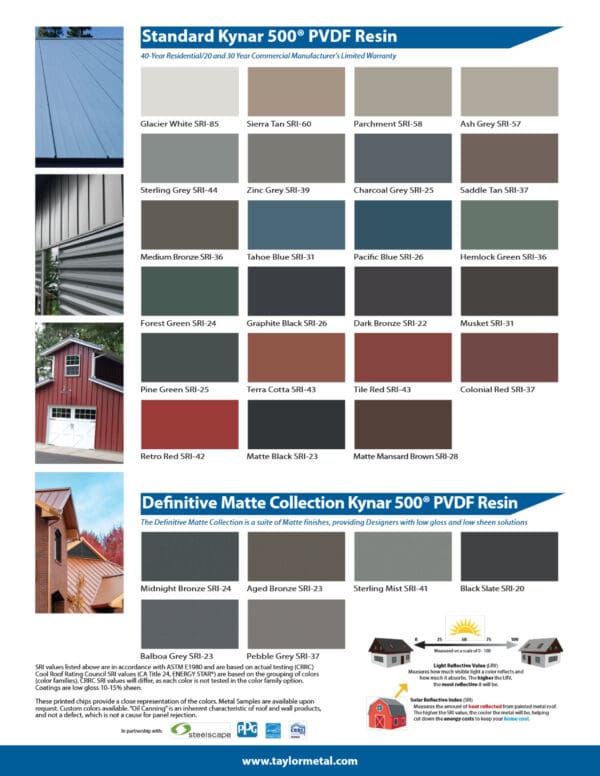

  • 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
  • Vintage® has a color range that can vary from batch-to-batch and have directional variations
  • Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
  • Kynar 500® (PVDF) Paint System – the ultimate in exterior durability and color retention
  • “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
  • Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
