Max Corr™

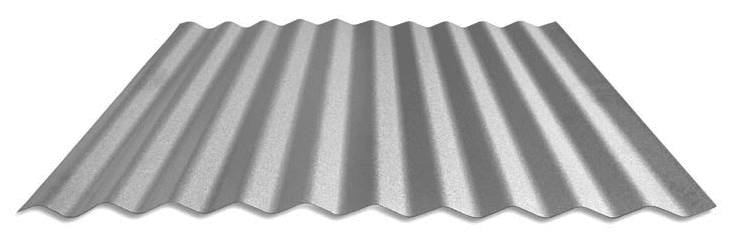

Max Corr™ Panel is an economical, structural, light gauge through-fastener roof and wall panel that is an excellent choice for commercial, industrial and agricultural applications, interior liner panels and aesthetic wall panels. This unique, wider profile reduces installation costs when compared with traditional 24″ 2-1/2″ corrugated panels.

Features & Benefits

  • Coverage options:
    34-5/8″ (29ga only)
    37-1/4″ (26ga, 24ga, 22ga and .032″ Aluminum)
  • 29, 26, 24 & 22 gauge Tru-Gauge™ and .032″ and .040″ Aluminum
  • 22 gauge Rusteel Plus™ (A606)
  • 3:12 minimum pitch recommended when installed with butyl sealant
  • Custom lengths 1′ to 30′ (For longer length panels, please inquire)
  • Long length flashings available up to 20’11”
  • Standard trim, custom trim and accessory packages available
  • Color matched neoprene washered screws
  • Roof and vertical or horizontal wall application
  • Perforated options available (please inquire)
  • Fiberglass panels available in white, 24″ wide, 12′ length
  • Manufactured in Salem OR
  • OverEZee™ Retro-fit systems available

Testing

  • ASTM A653/A924 – G90 Galvanized
  • ASTM A792 – Zincalume/Galvalume AZ-50/55
  • ASTM E1680 – Air infiltration (roof)
  • ASTM E1646 – Water infiltration (roof)
  • ASTM E331 – Water infiltration (wall)
  • ASTM E283 – Air infiltration (wall)

Material Specifications

  • 29 gauge ArmorTech™ Painted Steel
  • 26 gauge ArmorTech™ Painted Steel
  • 24 and 22 Tru-Gauge™ Kynar 500® Painted Steel
  • .032″ Kynar 500® Painted Aluminum
  • 24 Tru-Gauge™ G-90 Galvanized or AZ-50
  • 24 & 22 gauge bare Zincalume® Plus AZ-55 (no finish warranty  – 25 year perforation warranty)
  • G-90 Galvanized or AZ-50
  • .040″ Kynar 500® Painted Aluminum (please inquire)
  • 24 Tru-Gauge™ Bonderized
  • 22 gauge Rusteel Plus™ (A606)
    (No finish warranty – no perforation warranty)
  • Kynar 500® and substrate testing data available
